Part Number # XCMW145
SKU # 2373697
Image Disclaimers Message
XCMW145

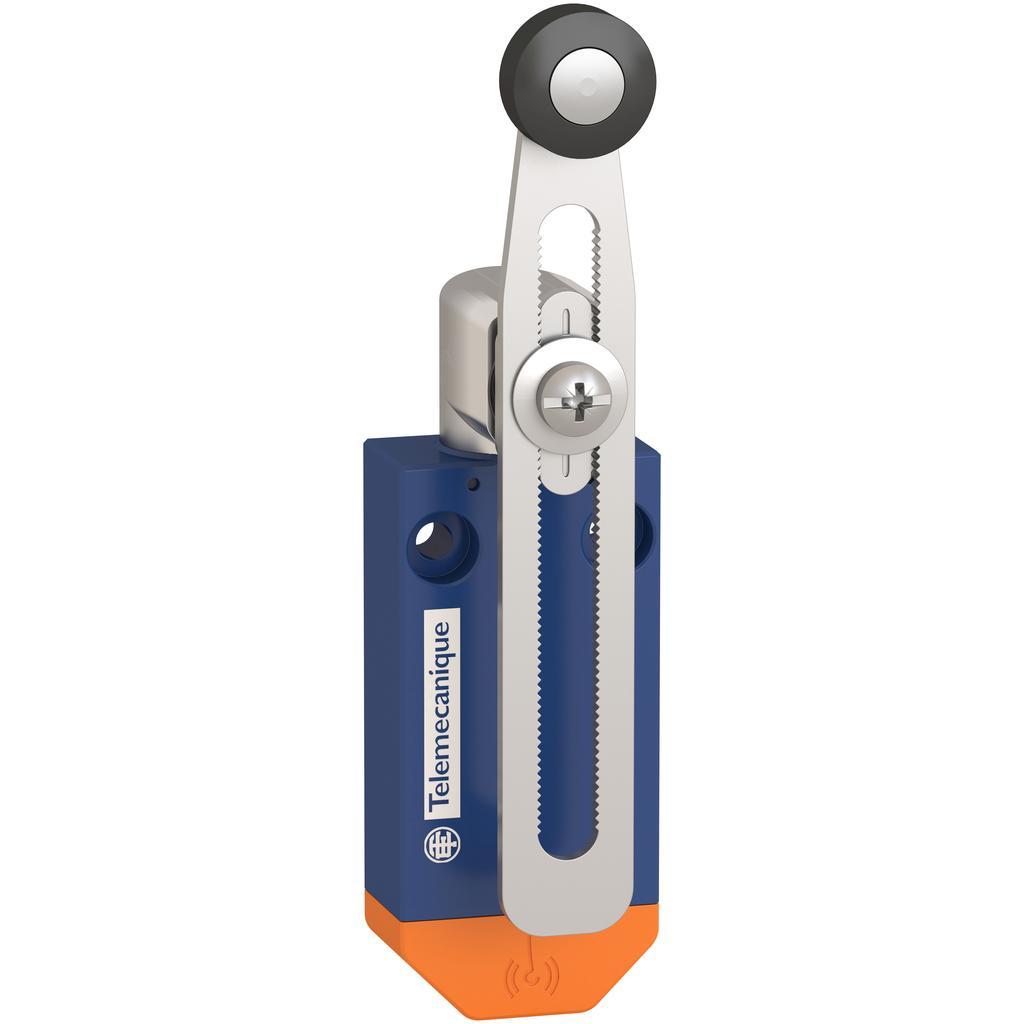

Telemecanique XCMW145, Wireless limit switch, Series: XCMW, IP65 Enclosure, -25 to 55 deg C Operating, Plastic, Environmental Conditions: -40 to 158 deg F Storage Temperature, -13 to 131 deg F Operating Temperature
Part Number # XCMW145
SKU # 2373697
Telemecanique XCMW145 Key Features
| Brand: | Telemecanique |
|---|---|
| Part Number # : | XCMW145 |
| SKU #: | 2373697 |
| Country of origin: | MX |
| Enclosure Type: | IP65 |
| Environmental Conditions: | -40 to 158 deg F Storage Temperature, -13 to 131 deg F Operating Temperature |
| Material: | Plastic |
| Operating Temperature: | -25 to 55 deg C |
| Series: | XCMW |
| Type: | Wireless limit switch |
| Manufacturer Name: | YAGEO Corporation |
| UNSPSC: | 39122213 |
| UPC: | 03389119643962 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Telemecanique XCMW145, Wireless limit switch, Series: XCMW, IP65 Enclosure, -25 to 55 deg C Operating, Plastic, Environmental Conditions: -40 to 158 deg F Storage Temperature, -13 to 131 deg F Operating Temperature
Brand: Telemecanique
Part Number: XCMW145
Telemecanique XCMW145, Wireless limit switch, Series: XCMW, IP65 Enclosure, -25 to 55 deg C Operating, Plastic, Environmental Conditions: -40 to 158 deg F Storage Temperature, -13 to 131 deg F Operating Temperature
Additional Description: TELE-XCMW145 MINI WIRELESS LIMIT SW ADJ PLAS ROLL LEV ADJUSTABLE
Catalog Description: This wireless and battery-less limit switch is part of the XCMW range, an offer with a miniature design. This range includes transmitters (micro limit switches) and receivers that communicate via 2.4 GHz radio transmission. Limit switches are used in all automated installations. They transmit data to the logic processing system regarding presence, absence, passing, positioning and end of travel. This miniature limit switch features a variable length thermoplastic roller lever (actuation by 30° cam, lateral approach, 1 or 2 directions). No wiring is required between the limit switch and the receiver, for a faster installation. Its sensing distance reaches 100m in free field, 300m with an external antenna and 25m in industrial environment. It is a IP65 rated limit switch, operating in an ambiant air temperature from -25°C to +70°C. This limit switch consits of a fixed plastic boby and a rotary head. Its dimensions are 30mm (width) x 16mm (depth) x 157mm (height). It weighs 0.095kg. T
XCMW145 Application
For a faster installation, For screw fixing, For access points and one communication module for Ethernet Modbus/TCP network can be purchased, For automatic doors, expandable conveyors, wheel chocks for trucks, rotary machines and turntablesXCMW145 Includes
TransmittersXCMW145 Item Features
- Fixed body type
- Plastic body material
- Metal head material
- Metal lever material
- By 2 screws fixing mode
- By 30 deg cam switch actuation
- Lateral approach, 2 directions type of approach
- ZigBee green power 2.4 GHz IEEE 802.15.4 communication network type
- 3 mW emission power
- <= 2 ms response time
- 3288 ft 100 m in free field984.25 ft 300 m with external antenna822 ft 25 m in industrial environment maximum sensing distance
- 4.43 lbf.in 0.5 N.m maximum torque for tripping
- 0.33 ft/s 0.1 m/s maximum actuation speed
- 400000 cycles mechanical durability
- 3600 switching operation per hour
- IC RSSFCC RCM radio agreement
XCMW145 Standards
PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov|EN/IEC 60947-1|EN/IEC 60947-5-1SKU #2373697Part Number #XCMW145UNSPSC39122213UPC03389119643962
