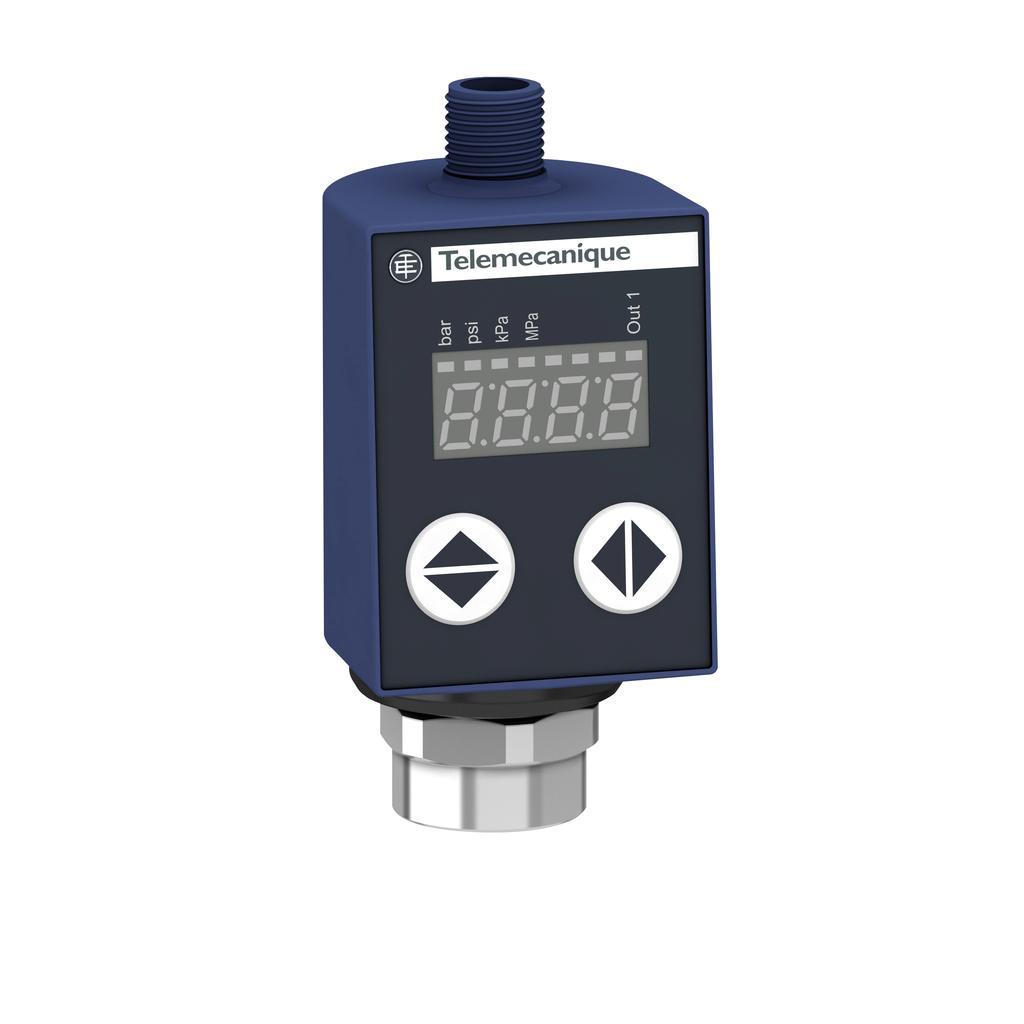

Telemecanique XMLR250M1P75 Pressure Sensors

Brand: Telemecanique

Part Number: XMLR250M1P75

Pressure sensors XMLR 250bar - G 1/4 - 24VDC - 0..10 V - PNP - M12

Additional Description: TELE-XMLR250M1P75 (N) prssw250BAR24V0-10V1PNPDSPG1/4AFM12 Pressure sensors XM, XMLR 250 bar, G 1/4, 24 VDC, 0...10 V, PNP, M12 NON-CANCELABLE, NON-RETURNABLE

Catalog Description: This product is part of the XM range, an offer of pressure sensors and switches. This electronic pressure sensor is used to control and measure pressure or vacuum levels in hydraulic or pneumatic systems. It supports 0V to 10V analogue output and NO/NC programmable PNP discrete solid state output. It has 4 digits 7 segments display and 1 LED for local signalling. It supports a pressure setting range of 0bar to 250bar and maximum permissible accidental pressure of 750bar. It is furnished with 4-pin M12 male connector for electrical connection and G 1/4inch (female) for fluid connection. It is an electronic pressure sensor with a rated supply voltage of 24V DC (voltage limits 17V to 33V) and a current consumption of ≤50mA. It offers mechanical durability of about 10 million cycles. It is an IP65 and IP67 rated product. The electronic pressure sensor is made of fibreglass impregnated polyacrylamide body with 316L stainless steel fluid entry. Its dimensions are 41mm (width) x 42mm (dept
