Part Number # XMLRM01G2P05
SKU # 2437809
XMLRM01G2P05
Telemecanique XMLRM01G2P05
Part Number # XMLRM01G2P05
SKU # 2437809
Telemecanique XMLRM01G2P05 Key Features
| Brand: | Telemecanique |
|---|---|
| Part Number # : | XMLRM01G2P05 |
| SKU #: | 2437809 |
| Amperage Rating: | 50 mA |
| Enclosure Type: | IP65/IP67 |
| Environmental Conditions: | -40 to 176 deg F |
| Light Source: | (2) Yellow LED |
| Operating Temperature: | -20 to 80 deg C |
| Pressure Rating: | -14.50 psi |
| Response Time: | 5 ms |
| Sensing Method: | Pressure Sensor |
| Series: | XMLR Series |
| Size: | 3.66 in H x 1.61 in W x 1.65 in D |
| Type: | Fixed Differential |
| Connection type: | Male Connector |
| Country of origin: | MX |
| Output type: | PNP, Solid State/PNP |
| Manufacturer Name: | YAGEO Corporation |
| UNSPSC: | 39122228 |
| UPC: | 03389119609852 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Telemecanique XMLRM01G2P05
Brand: Telemecanique
Part Number: XMLRM01G2P05
Additional Description: TELE-XMLRM01G2P05 (N) VMsw-1BAR24VDC2PNP1/4NPTSDSPG1/4AFM 12 Pressure sensors XM, XMLR -1 bar, G 1/4, 24 VDC, 2xPNP, M12 NON-CANCELABLE, NON-RETURNABLE

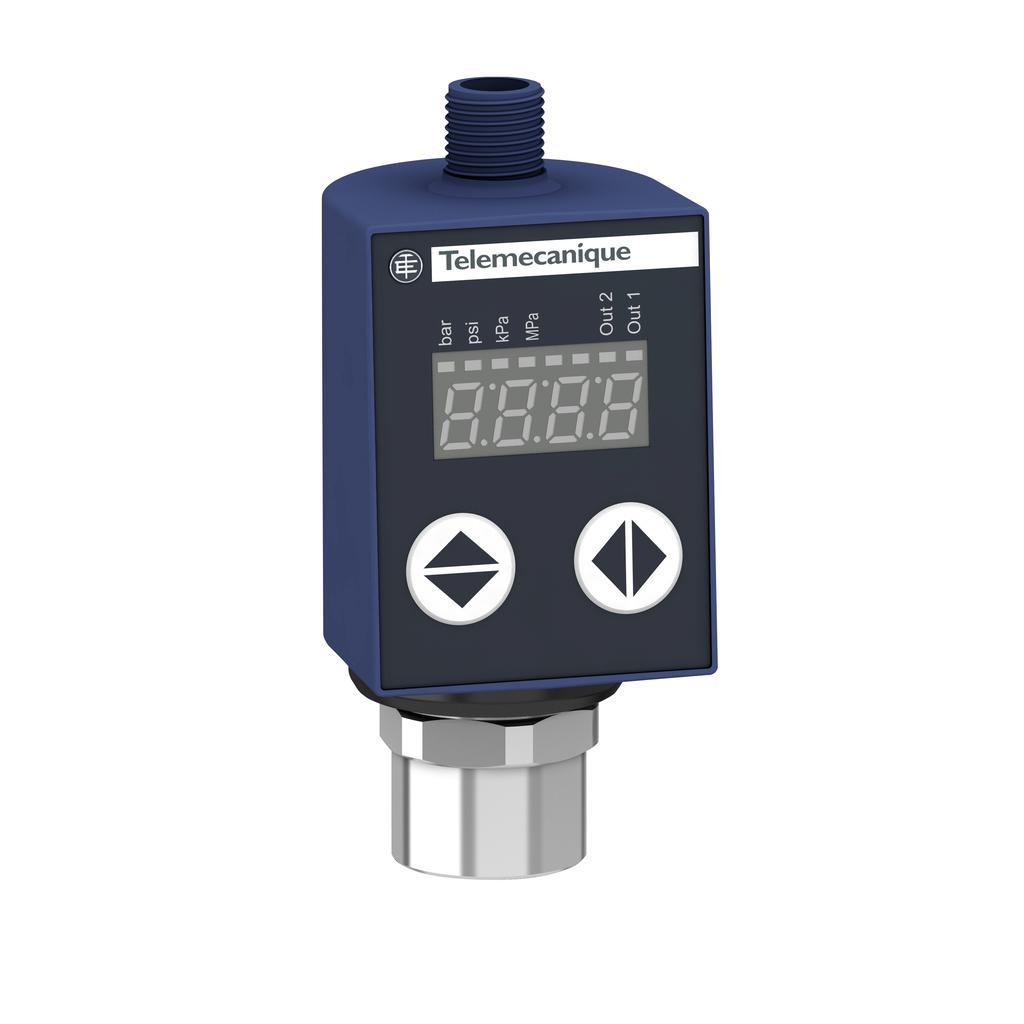

Catalog Description: This XMLR electronic pressure sensor has a 4 digit 7-segment display. This electronic pressure transmitter sensor with digital display is designed for accurate pressure measurement and display. It is fixed directly on tubage. It provides high corrosion resistance AISI 316L stainless steel and fluorocarbon resin pressure chamber for maximum longevity. 10 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits. It has a supply voltage of 24V DC and 2 x solid state outputs (PNP). It provides IP65/IP67 degree of protection. It is ideal in moulding and thermoforming presses, injection machines, pneumatic systems and assembly machinery, hydraulic systems of lifting and handling equipment, pumping and fresh water treatment, refrigeration of fluids. It complies with EN/IEC 61326-2-3 and UL 61010-1.
XMLRM01G2P05 Application
For accurate pressure measurement and displayXMLRM01G2P05 Item Features
- Polyester front material
- 0.5 kV DC uimp rated impulse withstand voltage
- Fresh water 32 to 176 deg F (0 to 80 deg C))Air -4 to 176 deg F (-20 to 80 deg C))Hydraulic oil -4 to 176 deg F (-20 to 80 deg C))Refrigeration fluid -4 to 176 deg F (-20 to 80 deg C)) controlled fluid
- -14.50 to -1.16 psi (-1 to -08 bar)-14.50 to -1.16 psi (-100 to -8 kPa)-14.5 to -1.16 psi (-99.97 to -80 kPa) adjustable range of switching point on rising pressure
- 0.44 psi (03 bar)0.43 psi (2.96 kPa)0.44 psi (3 kPa) minimum differential travel
- Polyacrylamide 316L stainless steel housing material
- Any position, but disposals can falsified the measurement in case of upside down mounting operating position
- Overload protection, Reverse polarity, Overvoltage protection, Short-circuit protection type
- 0 to 50 s in steps of 1 second switching output time delay
- 4 digits 7 segments display type
- Fast 50 msNormal 200 msSlow 600 ms display response time type
- 300 ms maximum delay first up
- <= 1 % of the measuring range overall accuracy
- <= 0.6 % of the measuring range measurement accuracy on switching output
- +/- 03 % of measuring range/ deg C drift of the sensitivity
- +/- 0.1 % of measuring range/ deg C drift of the zero point
- <= 1 % of the measuring range display accuracy
- 10000000 cycles mechanical durability
XMLRM01G2P05 Standards
UL 61010-1EN/IEC 61326-2-3|CULus|EAC|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2437809Part Number #XMLRM01G2P05UNSPSC39122228UPC03389119609852
Image provided may only be a representation of final product and may include optional equipment
