Part Number # XS212B4PAL2
SKU # 2430760
XS212B4PAL2
Telemecanique XS212B4PAL2 Proximity Sensors
Part Number # XS212B4PAL2
SKU # 2430760
Telemecanique XS212B4PAL2 Key Features
| Brand: | Telemecanique |
|---|---|
| Part Number # : | XS212B4PAL2 |
| SKU #: | 2430760 |
| Contact Configuration: | 1NO |
| Enclosure Type: | IP65/IP67/IP69K |
| Environmental Conditions: | -40 to 185 deg F Storage Temperature |
| Frequency Response: | <=2000 Hz |
| Interface: | 3-Wire |
| Measuring Range: | > 0.16 to 0.31 in |
| Response Time: | 0.2 ms |
| Sensing Distance: | 0.31 in |
| Sensing Method: | Proximity Sensor |
| Sensing Position: | Front |
| Size: | 37 mm |
| Temperature Rating (Degrees F): | -13 to 158 deg F |
| Type: | Fixed |
| Connection type: | 6.56 ft Cable |
| Country of origin: | FR |
| Material: | Nickel Plated Brass |
| Mounting type: | Non-Flush |
| Output type: | Discrete/PNP, PNP/Discrete |
| Manufacturer Name: | YAGEO Corporation |
| UNSPSC: | 41111926 |
| UPC: | 00785901546283 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

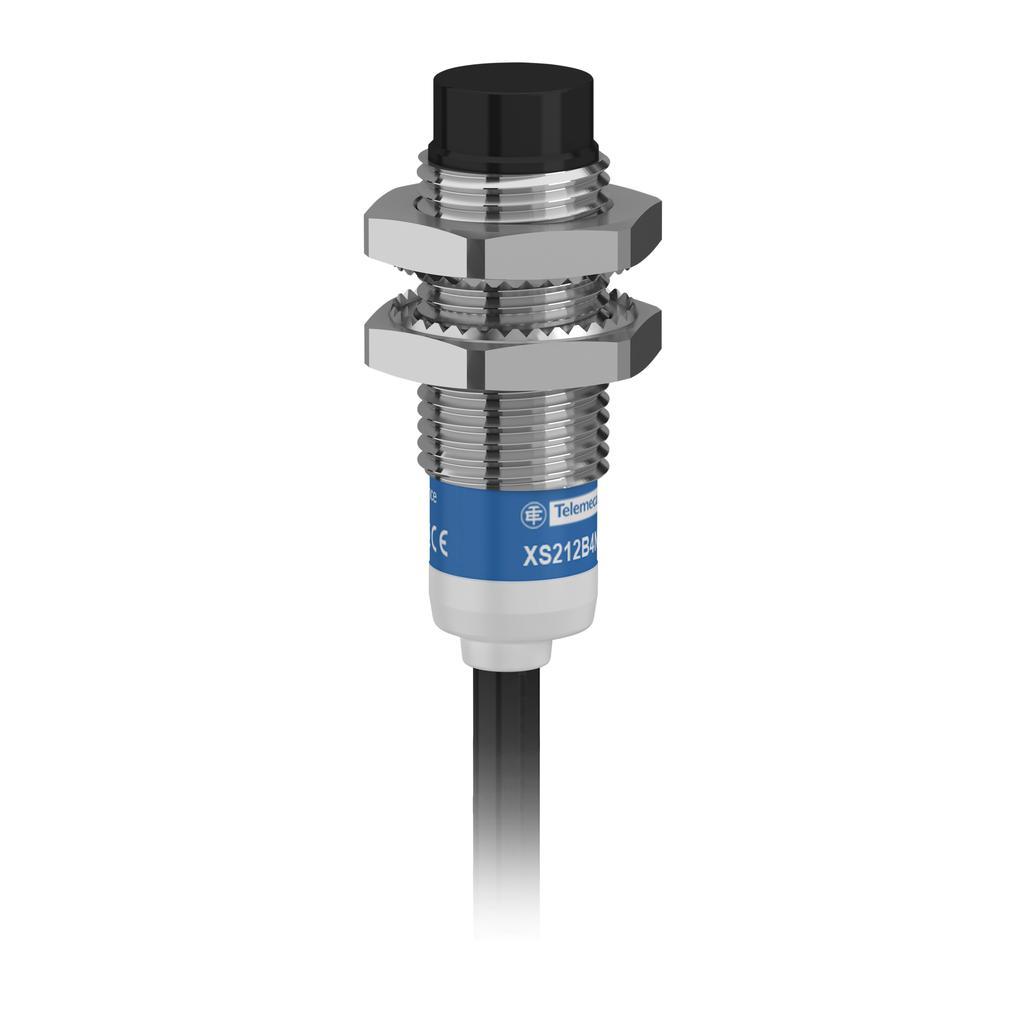

Telemecanique XS212B4PAL2 Proximity Sensors
Brand: Telemecanique
Part Number: XS212B4PAL2
inductive sensor XS2 M12 - L37mm - brass - Sn8mm - 12..24VDC - cable 2m
Additional Description: TELE-XS212B4PAL2 INDUCTIVE 24VDC PNP NO NONFLUSH CBL 2M inductive sensor XS2 M12, L37mm, brass, Sn8mm, 12...24 VDC, cable 2 m
Catalog Description: This product is part of the XS range, an offer of inductive proximity sensors. This general purpose inductive proximity sensor has a cylindrical M12 design and fixed body. It is non-flush mountable and has a frontal detection face. It supports 8mm nominal sensing distance and 1 NO PNP discrete output. The inductive proximity sensor with a rated supply voltage of 12V to 24V DC with reverse polarity protection and no load current consumption of ≤10mA. It is furnished with 2m cable for electrical connection. It is an IP65/IP67/IP69K rated product. The enclosure is made of nickel plated brass. The length of this product is 37mm. It weighs 0.086kg. It is suitable for railway, mobile equipment, material handling/conveying/logistics, material working/machine tools, packaging, robotics, food and beverage industries. This product is certified by CE, CSA, E2 and UL. Inductive sensors come in flush and non-flush versions, M8, M12, M18, M30 short and long bodies cylindrical forms, standard cubi
XS212B4PAL2 Standards
CE Certified|CSA Certified|DIN 40050|IEC 60529|IEC 60068-2-6|IEC 60068-2-27|Green Premium Listed|REACH Compliant|RoHS Compliant|UL Listed|PROP65: This product can expose you to chemicals including, Di-isononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.SKU #2430760Part Number #XS212B4PAL2UNSPSC41111926UPC00785901546283
Image provided may only be a representation of final product and may include optional equipment
