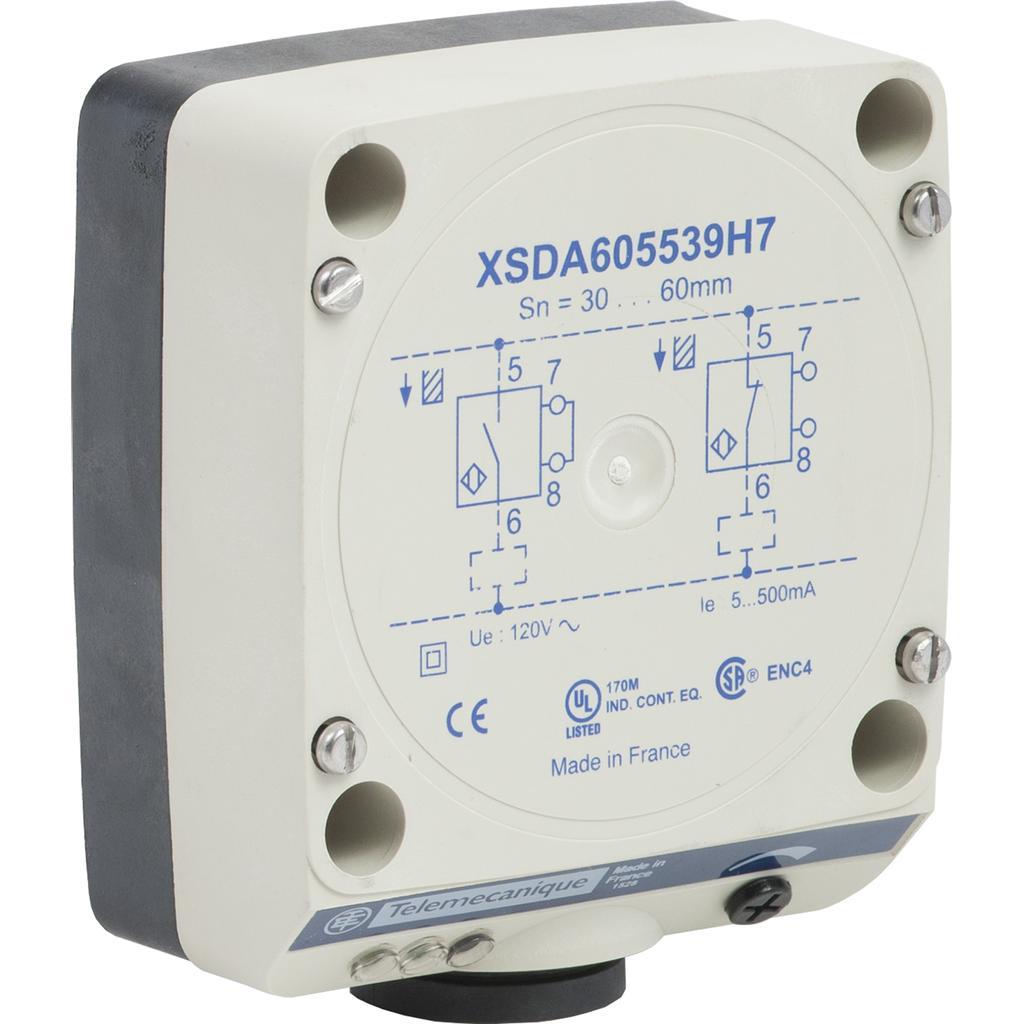

Telemecanique XSDA605539H7

Brand: Telemecanique

Part Number: XSDA605539H7

Telemecanique OsiSense® XS Inductive Proximity Sensor, 2-Wire Fixed Non-Shielded Programmable Rectangular, Series: XSD, Inductive Sensing Method, 2.36 in Sensing Distance, 1.57 to 2.36 in Measuring, 5-Position Turret Head Sensing Position, Discrete Output, 1NC-1NO Contact Configuration, 132 VAC, 500 mA, 10 Hz Frequency Response, Screw Clamp Terminal Connection, 80 mm H x 80 mm W x 40 mm D Size, NEMA 3/4/6/12/13/IP67 Enclosure, -25 to 85 deg C, Non-Flush Mounting, Plastic, Environmental Condi

Additional Description: TELE-XSDA605539H7 INDUCTIVE SENSOR 132VAC 500MA XS+OPTIONS inductive sensor XSD 80x80x40, plastic, Sn40mm, 24...240 VAC, terminals

Catalog Description: This XSD is a part of the OsiSense XS product range of inductive proximity sensors. Inductive proximity sensors enable the detection, without physical contact, of metal objects. Its range of applications is very extensive and includes monitoring the position of machine parts (cams, end stops, etc.) or counting the presence of metal objects. These sensors have high operating rates, fast response, and excellent resistance to industrial environments (robust products, fully encapsulated in resin). The range of this sensor is 1.18in (30mm) to 2.36in (60mm). The sensor accepts 43VAC to 132VAC power and provides a normally open or normally closed discrete output. The sensor is a non flush mountable plastic sensor with a five position turret head and screw clamp terminals. It is compliant with UL, CSA, and CE standards and IP67 rated. It is suitable for railway, mobile equipment, material handling/conveying/logistics, material working/machine tools, packaging, robotics, food and beverage indu
