Part Number # XUK8APSML02M12
SKU # 2444649
Image Disclaimers Message
XUK8APSML02M12

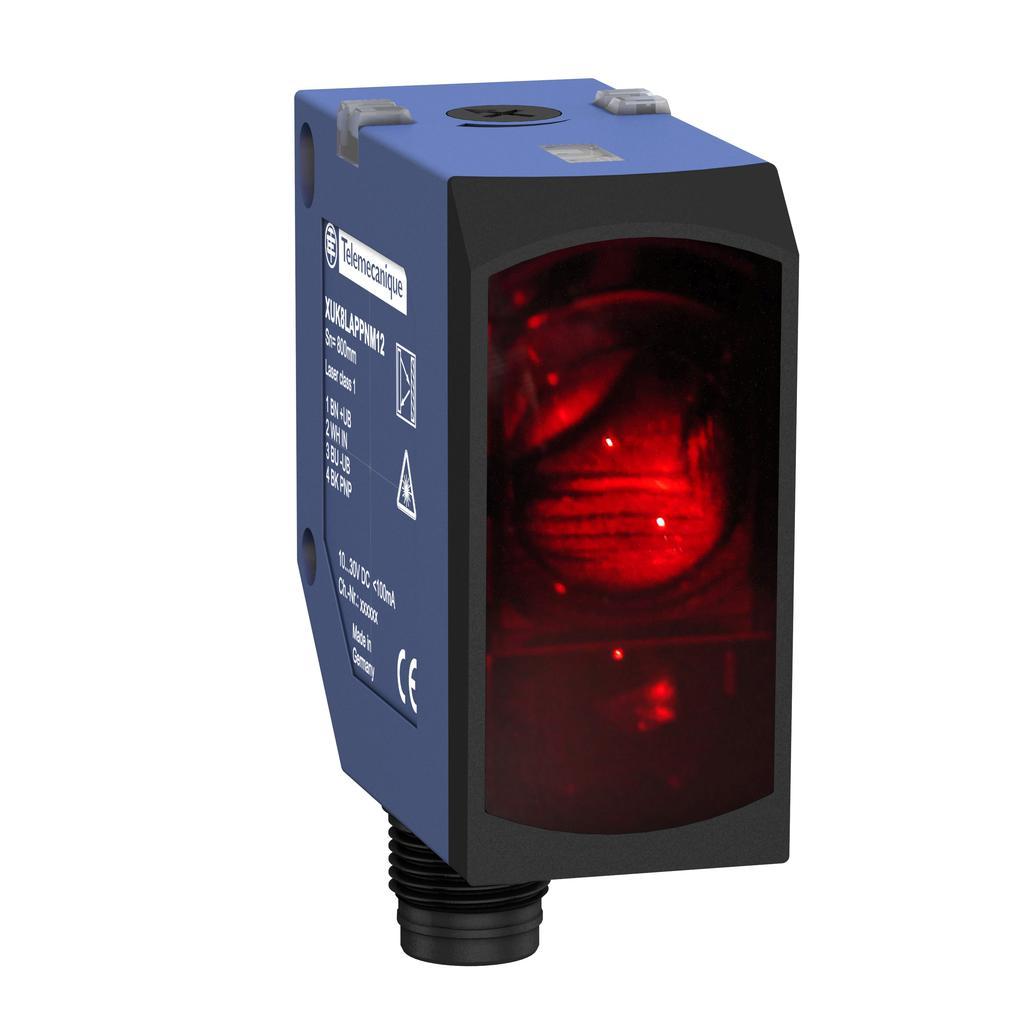

Telemecanique XUK8APSML02M12
Part Number # XUK8APSML02M12
SKU # 2444649
Telemecanique XUK8APSML02M12 Key Features
| Brand: | Telemecanique |
|---|---|
| Part Number # : | XUK8APSML02M12 |
| SKU #: | 2444649 |
| Enclosure Type: | IP67/IP69 |
| Environmental Conditions: | -4 to 176 deg F Storage Temperature, -4 to 140 deg F Operating Temperature |
| Frequency Rating: | 250 Hz |
| Operating Temperature: | -4 to 140, -4 to 122 deg F |
| Series: | General purpose single mode |
| Vibration: | 7 gn (10 to 55 Hz) IEC 60068-2-6 |
| Country of origin: | FR |
| Output type: | Discrete |
| Manufacturer Name: | YAGEO Corporation |
| UNSPSC: | 39121528 |
| UPC: | 03389119623483 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Telemecanique XUK8APSML02M12
Brand: Telemecanique
Part Number: XUK8APSML02M12
Additional Description: TELE-XUK8APSML02M12 PHOTOELECTRIC SENSOR COMPACT 50X50 DIFF electric laser sensor, XUK, 10...30 VDC, M12
Catalog Description: This product is part of the XU range, an offer of photoelectric sensors. This general purpose single mode photoelectric sensor in XUK compact 50mm x 50mm design. It has a diffuse with background suppression detection system. It supports 1.2m diffuse with background suppression nominal sensing distance and 1 normally opened or 1 normally closed programmable, PNP discrete type of output signal. It is furnished with 4-pin M12 male connector for electrical connection. It is an IP67 and IP69K rated product. It has a rated supply voltage of 12V to 24V DC with reverse polarity protection, a no-load current consumption of ≤30mA and a switching frequency of ≤250Hz. It has a red laser diffuse with background suppression emission and 2 LEDs. The enclosure is made of ABS/PC with PMMA lens. Its dimensions are 23mm (Width) x 50mm (Depth) x 50mm (Height) and weighs 0.035kg. It is ideal for material handling, packaging, labelling, assembly, lift, escalators or food and beverage industries. This p
XUK8APSML02M12 Application
For material handling, packaging, labelling, assembly, lift, escalators or food and beverage industries, For electrical connectionXUK8APSML02M12 Item Features
- Photo-electric sensor electronic sensor type
- Diffuse with background suppression detection system
- DC supply circuit type
- Red diffuse with background suppression emission
- PMMA lens material
- 3.94 ft 1.2 m diffuse with background suppression maximum sensing distance
- Without add on output
- 5 x 0.34 mm2 cable composition
- PVC wire insulation material
- 0.24 in 6 mm cable outer diameter
- <= 100 mA overload and short-circuit protection switching capacity in ma
- 300 ms maximum delay first up
- Using teach button or remote teaching setting-up
XUK8APSML02M12 Standards
CULus|CEEcolab|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2444649Part Number #XUK8APSML02M12UNSPSC39121528UPC03389119623483
