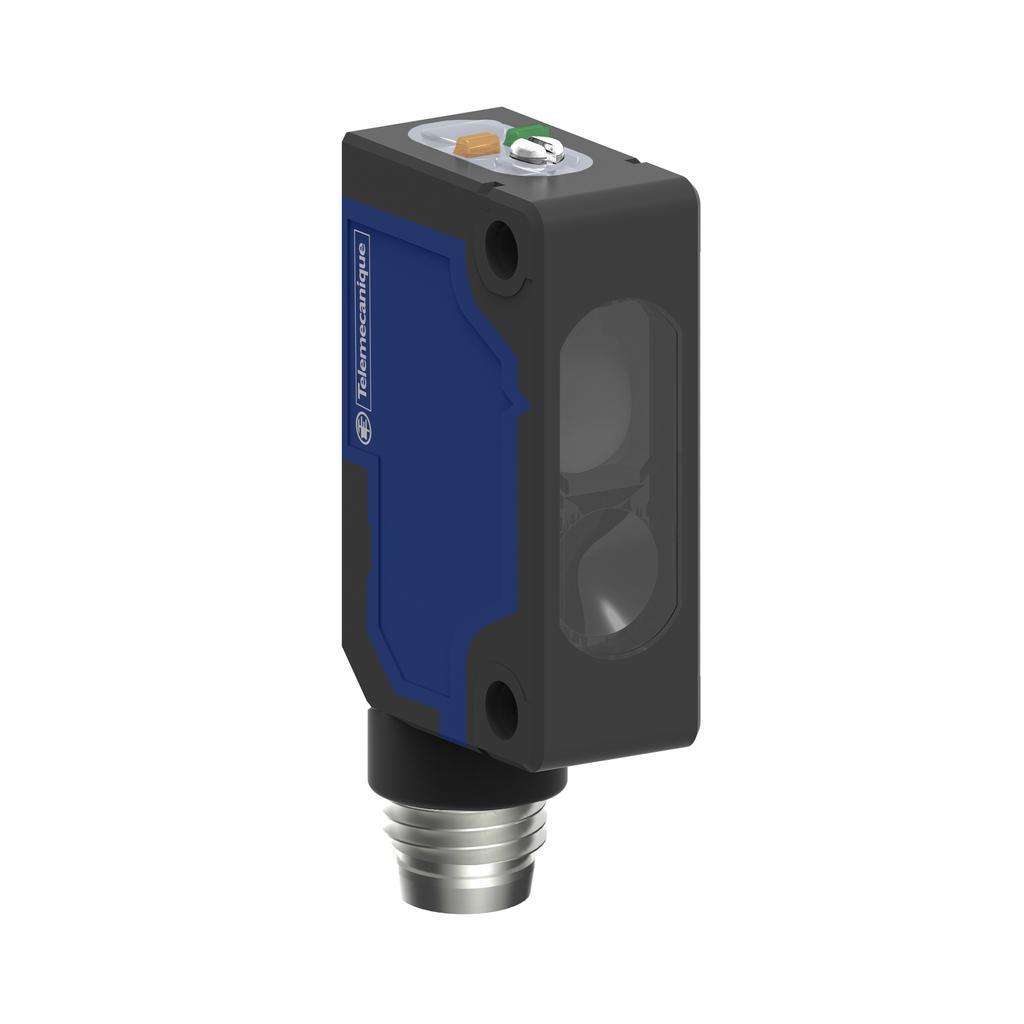

Telemecanique XUM9ANXBM8

Brand: Telemecanique

Part Number: XUM9ANXBM8

Additional Description: TELE-XUM9ANXBM8 (N) PHOTO MINI REFLEX POLAR NPN NO NC CON M8 miniature, polarised, Smax=8 m, NPN, connector M8 NON-CANCELABLE, NON-RETURNABLE

Catalog Description: This product is part of the XUM range, an offer of miniature photoelectric sensors. This reference correspond to a polarised reflex sensor with adjustable sensitivity, Light ON/Dark ON (NC/NO) function and a NPN solid-state digital output. It features a 4-pin M8 connector. It is a photoelectric cell with a rated supply voltage of 12V to 24VDC and protection against reverse polarity. This miniature and robust sensor allows quick installation in compact spaces of even harsh industrial applications. It provides nominal sensing distance of 6.7m and maximum sensing distance of 8m. It is an IP65 and IP67 rated product, operating in an ambiant air temperature from -30°C to +55°C (-22°F to +131°F). This sensor is suitable for harsh industrial environments. This photocell features a compact and robust housing. The casing is made of plastic (PBT) and the lens is made of PMMA. Its dimensions are 10.8mm (width) x 19.5mm (depth) x 31.5mm (height) and weighs 0.010kg. It is ideal for material ha
