Part Number # XX500A0KC00L3
SKU # 2423446
XX500A0KC00L3

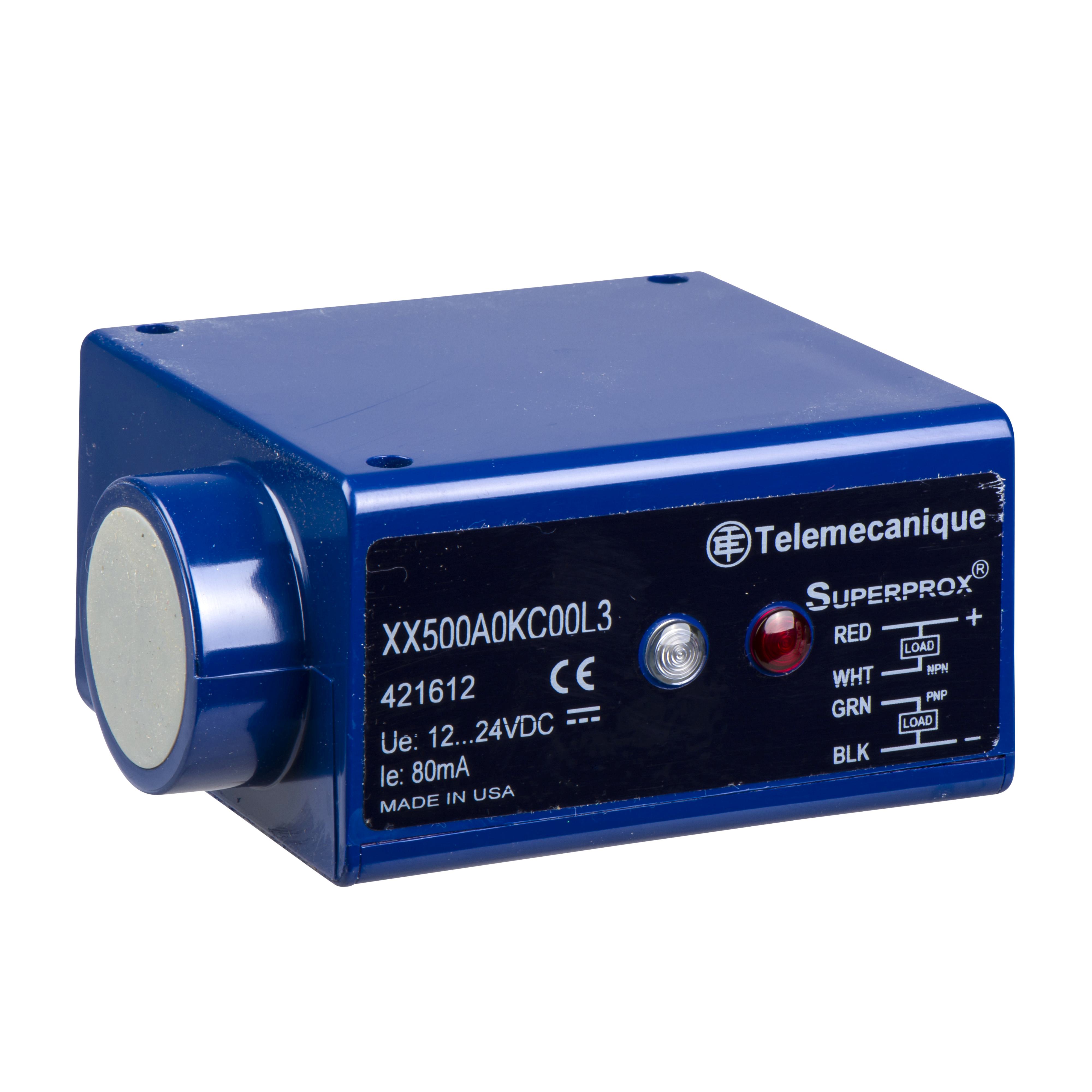

Telemecanique XX500A0KC00L3 Proximity Switch
Part Number # XX500A0KC00L3
SKU # 2423446
Telemecanique XX500A0KC00L3 Key Features
| Brand: | Telemecanique |
|---|---|
| Part Number # : | XX500A0KC00L3 |
| SKU #: | 2423446 |
| Amperage Rating: | 25 mA |
| Contact Configuration: | 2NO |
| Enclosure Type: | IP67 |
| Environmental Conditions: | -40 to 176 deg F Ambient Storage Temperature, 30 gn Shock Resistance, +/-1 mm Vibration Resistance |
| Frequency Response: | 500 kHz |
| Interface: | 4-Wire |
| Light Source: | LED |
| Measuring Range: | 0.0064 to 0.051 m |
| Sensing Distance: | 0.05 m |
| Sensing Method: | Ultrasonic |
| Size: | 0.47 in W x 1.97 in D x 0.47 in H |
| Temperature Rating (Degrees F): | -4 to 149 deg F |
| Type: | Cylindrical |
| Connection type: | 3 m Cable |
| Country of origin: | US |
| Material: | Plastic |
| Output type: | NPN/PNP |
| Manufacturer Name: | YAGEO Corporation |
| UNSPSC: | 39122230 |
| UPC: | 00785901589020 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Telemecanique XX500A0KC00L3 Proximity Switch
Brand: Telemecanique
Part Number: XX500A0KC00L3
Schneider Electric,ULTRASONIC SENSOR SPECIAL + OPTIONS,-20...65 ??C,1 LED (yellow) for output state-1 LED (green) for supply on,10...28 V DC,12...24 V DC with reverse polarity protection,12 mm,ULTEM,cylindrical M12,12 mm,ultrasonic sensor,IEC 60947-5-2,UL,IP67 conforming to IEC 60529,cable M8 4 pins,3 m cable length,general purpose,plastic,ultrasonic sensor
Additional Description: TELE-XX500A0KC00L3 (N) ULTRASONIC SENSOR SPECIAL + OPTIONS NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Ultrasonic sensors XX, ultrasonic sensor special, with options
XX500A0KC00L3 Application
Material Handling an Hoisting ApplicationsXX500A0KC00L3 Item Features
- Mercury-free
XX500A0KC00L3 Standards
CE Certified|IEC 60068-2-27|IEC 60529|IEC 60947-5-2|IEC 61000-4-2|IEC 61000-4-3|IEC 61000-4-4|Green Premium Listed|REACH Compliant|RoHS Compliant|UL Listed|PROP65: This product can expose you to chemicals including, Di-isononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.SKU #2423446Part Number #XX500A0KC00L3UNSPSC39122230UPC00785901589020
Image provided may only be a representation of final product and may include optional equipment
