XX518A3PBM12

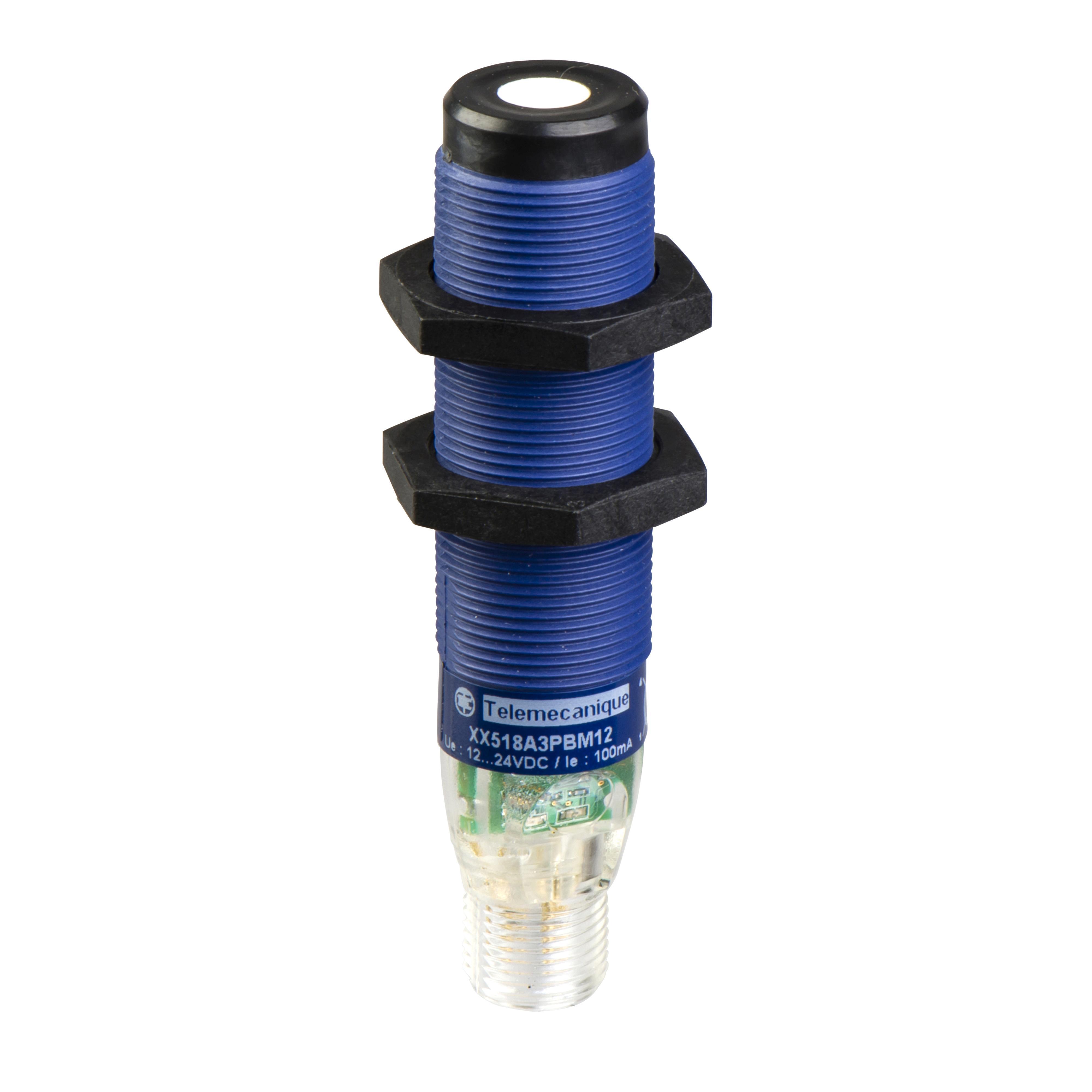

Telemecanique XX518A3PBM12 Osisense Xx Sensor
Part Number # XX518A3PBM12
SKU # 2438725
$185.57 / Each
Telemecanique XX518A3PBM12 Key Features
| Brand: | Telemecanique |
|---|---|
| Part Number # : | XX518A3PBM12 |
| SKU #: | 2438725 |
| Amperage Rating: | 100 mA |
| Contact Configuration: | 1NC |
| Enclosure Type: | NEMA 4X/IP67 |
| Environmental Conditions: | -40 to 176 deg F Ambient Storage/30 gn Shock Resistance |
| Frequency Response: | 300 kHz |
| Interface: | 4-Wire |
| Light Source: | (2) Green/Yellow LED |
| Measuring Range: | 50.8 to 508 mm |
| Response Time: | 15 ms |
| Sensing Distance: | 20 in |
| Sensing Method: | Ultrasonic |
| Series: | XX5 Series |
| Size: | 0.71 in W x 0.71 in D x 0.03 in H |
| Temperature Rating (Degrees F): | -22 to 158 deg F |
| Type: | Adjustable |
| Connection type: | 4-Pin M12 Male Connector |
| Country of origin: | US |
| Material: | ULTEM� Plastic |
| Mounting type: | Threaded |
| Output type: | PNP |
| Manufacturer Name: | YAGEO Corporation |
| UNSPSC: | 41111960 |
| UPC: | 00078590161328 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$185.57 / Each
Quantity:
- Telemecanique Telemecanique OsiSense XX Sensor, Adjustable, Series: XX5 Series, Ultrasonic Sensing Method, 20 in Sensing Distance, 50.8 to 508 mm Measuring, (2) Green/Yellow LED Light Source, 0.0127 Accuracy, PNP Output, 1NC Contact Configuration, 12 to 24 V DC, 100 mA, 300 kHz Frequency Response, (1) 4-Pin M12 Male Connector Connection, 15 ms Response, 4-Wire Interface, 0.71 in W x 0.71 in D x 0.03 in H Size, NEMA 4X/IP67 Enclosure, -22 to 158 deg F, Threaded Mounting, ULTEM Plastic, Environmental Conditions: -40 to 176 deg F Ambient Storage/30 gn Shock Resistance
XX518A3PBM12 Application
For optimum and universal and indoor useXX518A3PBM12 Standards
CE Certified|ECCN: EAR99|IEC 61000-4-4|IEC 61000-4-3|IEC 60068-2-27|IEC 61000-4-2|IEC 60947-5-2|IEC 60529|REACH Compliant|RoHS Compliant|UL Listed|PROP65: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP) and Diisononyl phthalate (DINP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.govSKU #2438725Part Number #XX518A3PBM12UNSPSC41111960UPC00078590161328
