Part Number # XZBWR2STT24
SKU # 2440524
Image Disclaimers Message
XZBWR2STT24

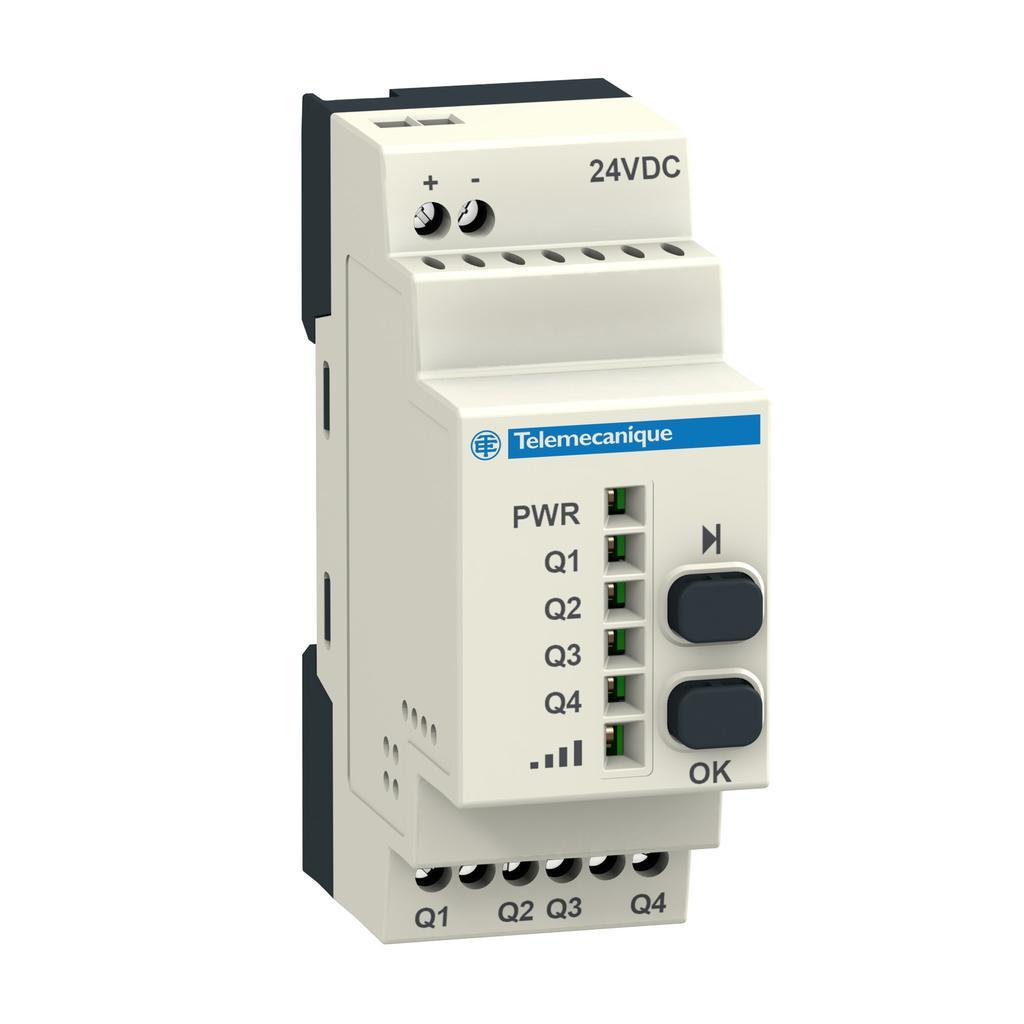

Telemecanique XZBWR2STT24
Part Number # XZBWR2STT24
SKU # 2440524
Telemecanique XZBWR2STT24 Key Features
Brand: | Telemecanique |
---|---|
Part Number # : | XZBWR2STT24 |
SKU #: | 2440524 |
Dimensions: | 108 mm H x 36 mm W x 75 mm D |
Specifications: | 24 VDC, 200 mA |
Suitable For Use With: | Radio transmitter XZBWE |
Country of origin: | MX |
Material: | Plastic |
Manufacturer Name: | YAGEO Corporation |
UNSPSC: | 39121528 |
UPC: | 03389119623964 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Telemecanique XZBWR2STT24
Brand: Telemecanique
Part Number: XZBWR2STT24
Additional Description: TELE-XZBWR2STT24 Prog Recvr 4 PNP 200mA 24V DC 6 LEDs mA, 24 V DC, 2 pusbuttons, 6 LEDs
Catalog Description: This product is part of the XC Standard range, an offer of limit switches. This programmable receiver is equipped with 2 buttons and 6 LED indicators (power ON, reception signal and output active). It has 4 PNP output contacts and has 2.4GHz ZigBee green power communication port protocol. It is available with 1A fuse type fast blow short-circuit protection. It is a programmable receiver with nominal output current of 0.8A at 24V DC, maximum switching current of 200mA DC, rated supply voltage of 24V DC and maximum power consumption of 26W DC. Receiver unit has 2 channels per receiver. It supports 35mm symmetrical DIN rail mount conforming to EN/IEC 60715, mounting plate. It is an IP20 rated product. The programmable receiver is made of self-extinguishing plastic. Its dimensions are 36mm (Width) x 75mm (Depth) x 108mm (Height) and weighs 0.13kg. It is used for interface to PLC applications. This product is certified by CE. It meets EN/IEC 60947-5-1 and EN/IEC 60947-1 standards. It is co
XZBWR2STT24 Application
Used for interface to PLC applicationsXZBWR2STT24 Standards
EN/IEC 60947-5-1|EN/IEC 60947-1 Standards|CE|Ex OsiSwitch|EN 50041|EN/IEC 60715|IP20|EN 50047SKU #2440524Part Number #XZBWR2STT24UNSPSC39121528UPC03389119623964
