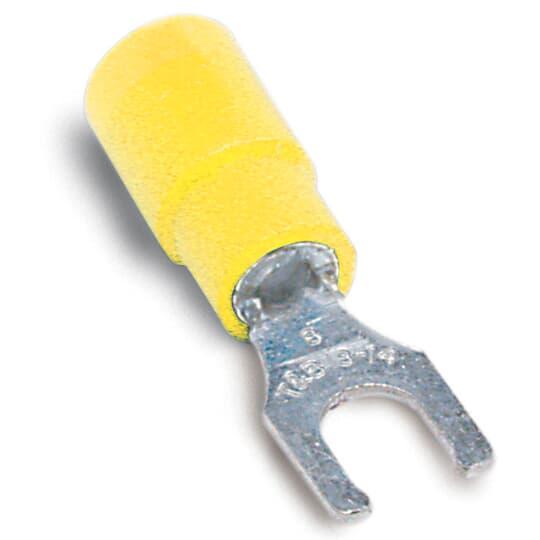

Thomas & Betts 10RC-10FLX Sta-Kon Fork Terminal
Thomas & Betts 10RC-10FLX Sta-Kon Fork Terminal
Part #:10RC-10FLX
SKU #: 2228538
Key Features
Part #:10RC-10FLX
SKU #: 2228538
Brand:Â Thomas & Betts
Barrel Type:Â Brazed Seam/Serrated
Conductor Size:Â 12 to 10, 12 to 10 AWG
Finish:Â Electroplated Tin
Series:Â RC Series
Specifications:Â 1/4 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation
- Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring
- Brazed seam barrel is serrated for high pull-out value
- Insulation is Color coded
- WT112M, WT145C, WT2000, ERG4001, ERG4003 recommended tools
Thomas & Betts 10RC-10FLX Sta-Kon Fork Terminal
Sta-Kon Fork Terminal, Expanded Insulated, Series: RC Series, 12 to 10 AWG Conductor, #10 Stud, 1.1 in Length, Brazed Seam/Serrated Barrel, Locking Fork Tongue, 0.37 in W x 0.04 in THK Tongue, 600 VAC, Specifications: 1/4 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation, 105 deg C, Copper, Electroplated Tin, Yellow
Additional Description: TB -10RC-10FLX EXP INS VINYL LKG FRK TERM 12-10 YL #10,
Catalog Description: Expanded Vinyl-Insulated Locking Fork Terminal, Length 1.10 Inches, Width .37 Inches, Maximum Insulation .250, Bolt Hole #10, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated
