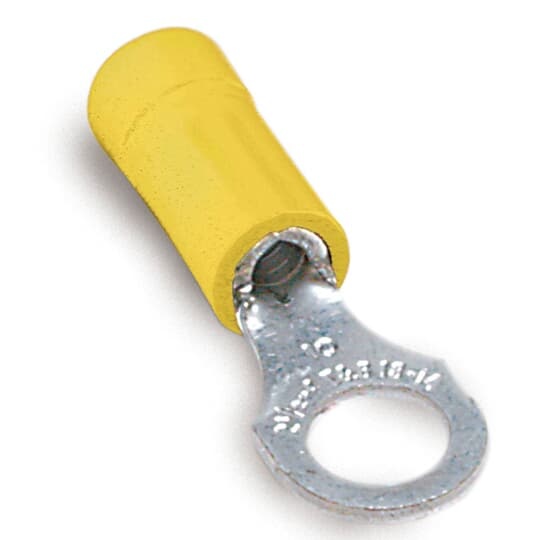

Thomas & Betts 10RC-14CP Sta-Kon Ring Terminal
Image Disclaimers Message
Thomas & Betts 10RC-14CP Sta-Kon Ring Terminal
Thomas & Betts 10RC-14CP Sta-Kon Ring Terminal
Part #:10RC-14CP
SKU #: 2403357
Key Features
Part #:10RC-14CP
SKU #: 2403357
Brand: Thomas & Betts
Barrel Type: Brazed Seam
Conductor Size: 12 to 10 AWG
Finish: TiN Coated
Series: RC Series
Specifications: 0.21 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation
- Terminals are Self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wire flex point
- Brazed seam barrel that is serrated to obtain high pullout value
- Made of copper and has electro-tin plating for corrosion-resistance
- 20 pieces/pack
Thomas & Betts 10RC-14CP Sta-Kon Ring Terminal
Sta-Kon Ring Terminal, Insulated, Series: RC Series, 12 to 10 AWG Conductor, 1/4 in Stud, 1.16 in Length, Brazed Seam Barrel, Ring Tongue, 0.5 in W x 0.04 in THK Tongue, 600 VAC, 0.21 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation, 105 deg C, Copper, Tin Coated, Yellow
Additional Description: TB -10RC-14CP INS VIN RING TERM 12-10 1/4IN YEL
Catalog Description: Vinyl-Insulated Ring Terminal, Length 1.16 Inches, Width .50 Inches, Maximum Insulation .210, Bolt Hole 1/4 Inch, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated, Mini Pacl
