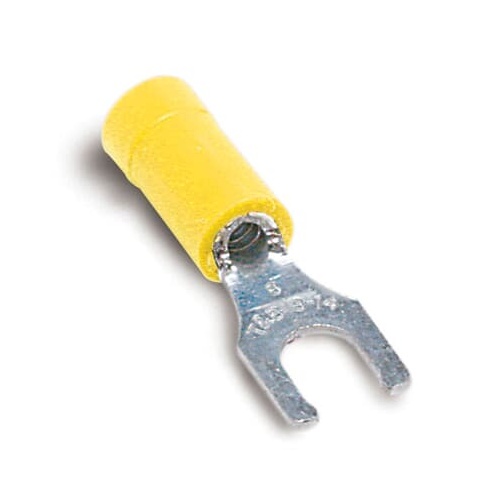

Thomas & Betts 10RC-8FL Sta-Kon Fork Terminal
Thomas & Betts 10RC-8FL Sta-Kon Fork Terminal
Part #:10RC-8FL
SKU #: 38160
Key Features
Part #:10RC-8FL
SKU #: 38160
Brand: Thomas & Betts
Barrel Type: Brazed Seam/Serrated
Conductor Size: 12 to 10, 12 to 10 AWG
Finish: Electroplated Tin
Series: RC Series
Specifications: 0.22 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation
- Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring
- Brazed seam barrel is serrated for high pull-out value
- Insulation is Color coded
- WT112M, WT145C, WT2000, ERG4001, ERG4003 recommended tools
Thomas & Betts 10RC-8FL Sta-Kon Fork Terminal
Sta-Kon Fork Terminal, Insulated, Series: RC Series, 12 to 10 AWG Conductor, #8 Stud, 1.09 in Length, Brazed Seam/Serrated Barrel, Locking Fork Tongue, 0.37 in W x 0.04 in THK Tongue, 600 VAC, Specifications: 0.22 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation, 105 deg C, Copper, Electroplated Tin, Yellow
Additional Description: TB -10RC-8FL INS VINYL LKG FORK TERM 12-10 No8 YELL
Catalog Description: Vinyl-Insulated Locking Fork Terminal, Length 1.09 Inches, Width .37 Inches, Maximum Insulation .220, Bolt Hole #8, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated
