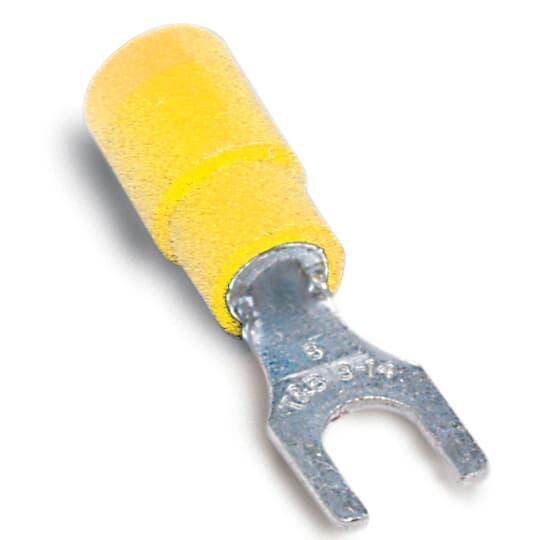

Thomas & Betts 10RC-8FX Sta-Kon Fork Terminal
Thomas & Betts 10RC-8FX Sta-Kon Fork Terminal
Part #:10RC-8FX
SKU #: 38162
Key Features
Part #:10RC-8FX
SKU #: 38162
Brand: Thomas & Betts
Barrel Type: Brazed Seam/Serrated
Conductor Size: 12 to 10, 12 to 10 AWG
Finish: Electroplated Tin
Series: RC Series
Specifications: 1/4 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation
- Fork terminals allow easy installation since the mounting screw does not have to be completely removed
- Brazed seam barrel is serrated for high pull-out value
- Insulation is Color coded
- Terminals have expanded insulation support which means a wider wire entry to accommodate heavy wall insulation
- WT112M, WT145C, WT2000, ERG4001, ERG4003 recommended tools
Thomas & Betts 10RC-8FX Sta-Kon Fork Terminal
Sta-Kon Fork Terminal, Expanded Insulated, Series: RC Series, 12 to 10 AWG Conductor, #8 Stud, 1.11 in Length, Brazed Seam/Serrated Barrel, Fork Tongue, 0.38 in W x 0.04 in THK Tongue, 600 VAC, Specifications: 1/4 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation, 105 deg C, Copper, Electroplated Tin, Yellow
Additional Description: TB -10RC-8FX EXP INS VINL FORK TERM, 12-10, No8 YELL
Catalog Description: Expanded Vinyl-Insulated Fork Terminal, Length 1.11 Inches, Width .38 Inches, Maximum Insulation .250, Bolt Hole #8, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated
