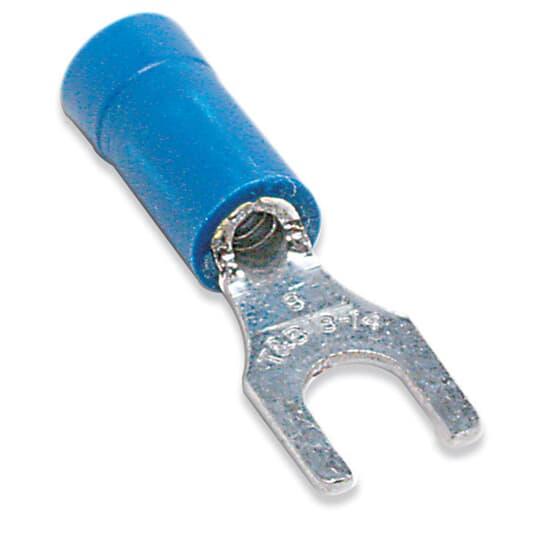

Thomas & Betts 14RB-14F Sta-Kon Fork Terminal
Thomas & Betts 14RB-14F Sta-Kon Fork Terminal
Part #:14RB-14F
SKU #: 38279
Key Features
Part #:14RB-14F
SKU #: 38279
Brand: Thomas & Betts
Barrel Type: Brazed Seam/Serrated
Conductor Size: 18 to 14, 18 to 14 AWG
Finish: Electroplated Tin
Series: RB Series
Specifications: 0.17 in Dia Maximum Insulation, 0.38 in Clearance, Vinyl Insulation
- Fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wire flex point
- Brazed seam barrel is serrated for high pull-out value
- Insulation is Color coded
- WT112M, WT145C, WT2000, ERG4001, ERG4003 recommended tools
Thomas & Betts 14RB-14F Sta-Kon Fork Terminal
Sta-Kon Fork Terminal, Insulated, Series: RB Series, 18 to 14 AWG Conductor, 1/4 in Stud, 1.11 in Length, Brazed Seam/Serrated Barrel, Fork Tongue, 0.44 in W x 0.03 in THK Tongue, 600 VAC, Specifications: 0.17 in Dia Maximum Insulation, 0.38 in Clearance, Vinyl Insulation, 105 deg C, Copper, Electroplated Tin, Blue
Additional Description: TB -14RB-14F INS VINYL FORK TRM 18-14 1/4IN BLUE BLUE
Catalog Description: Vinyl-Insulated Fork Terminal, Length 1.11 Inches, Width .44 Inches, Maximum Insulation .170, Bolt Hole 1/4 Inch, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated
