Part Number # 14RB-251T
SKU # 38284
14RB-251T

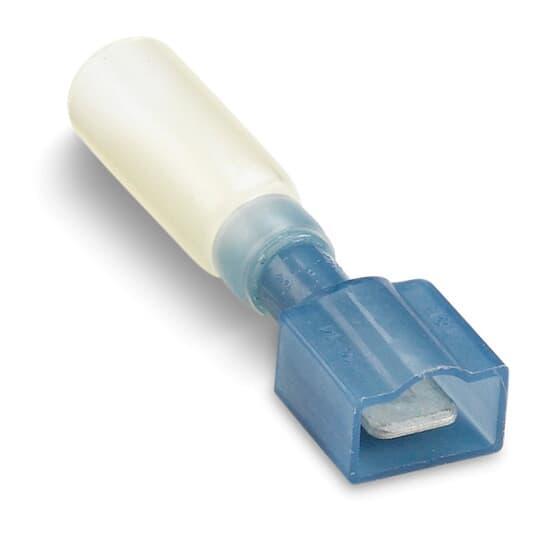

Thomas & Betts 14RB-251T Sta-Kon Male Tab
Part Number # 14RB-251T
SKU # 38284
Thomas & Betts 14RB-251T Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 14RB-251T |
| SKU #: | 38284 |
| Barrel Type: | Brazed Seam |
| Conductor Size: | 16 to 14, 16 to 14 AWG |
| Dimensions: | 1.13 in L x 0.45 in W |
| Finish: | Electro Plated Tin |
| Series: | 250 |
| Specifications: | 0.2 in Maximum Insulation, 0.03 in Stock |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Terminal Type: | Crimp |
| Type: | Insulated |
| Country of origin: | US |
| Material: | Brass |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121447 |
| UPC: | 00786210869759 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 14RB-251T Sta-Kon Male Tab
Brand: Thomas & Betts
Part Number: 14RB-251T
Sta-Kon Male Tab, Insulated, Series: 250, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Crimp Terminal, 300 VAC, 0.03 in THK Stock, 0.2 in Dia Maximum Nylon/Polyamide Insulation, 105 deg C, Brass/Copper, Blue, Tin Electro-Plated, 1.13 in L x 0.45 in W
Additional Description: TB -14RB-251T FULL INS NYLON MALE-250 TAB 16-14 TAB
Catalog Description: Nylon-Insulated Male Tab, Length 1.13 Inches, Width .45 Inches, Maximum Insulated .170, Tab Size .250x.032, Wire Range #16-#14 AWG, Color Blue, Copper, Tin Plated
14RB-251T Item Features
- Brazed seam serrated barrel provides maximum tensile strength
14RB-251T Standards
CSA Certified|UL94 V-0 Flammability Rating|UL File No. E66716SKU #38284Part Number #14RB-251TUNSPSC39121447UPC00786210869759
Image provided may only be a representation of final product and may include optional equipment
