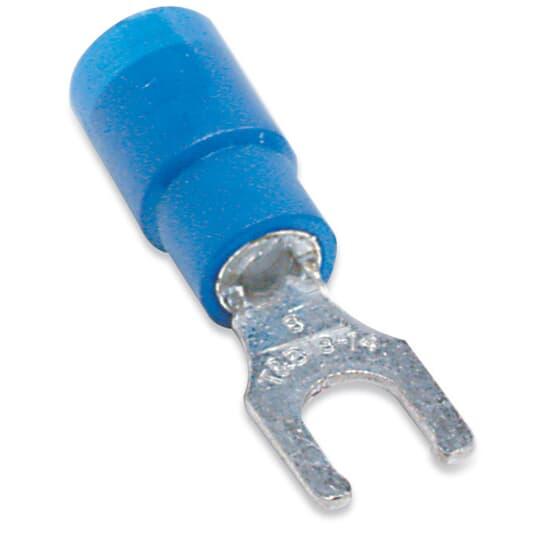

Thomas & Betts 14RB-6FLX Sta-Kon Fork Terminal
Image Disclaimers Message
Thomas & Betts 14RB-6FLX Sta-Kon Fork Terminal
Thomas & Betts 14RB-6FLX Sta-Kon Fork Terminal
Part #:14RB-6FLX
SKU #: 2178536
Key Features
Part #:14RB-6FLX
SKU #: 2178536
Brand: Thomas & Betts
Barrel Type: Brazed Seam/Serrated
Conductor Size: 18 to 14, 18 to 14 AWG
Finish: Electroplated Tin
Series: RB Series
Specifications: 0.2 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation
- Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring
- Brazed seam barrel is serrated for high pull-out value
- Insulation is Color coded
- WT112M, WT145C, WT2000, ERG4001, ERG4003 recommended tools
Thomas & Betts 14RB-6FLX Sta-Kon Fork Terminal
Sta-Kon Fork Terminal, Expanded Insulated, Series: RB Series, 18 to 14 AWG Conductor, #6 Stud, 0.97 in Length, Brazed Seam/Serrated Barrel, Locking Fork Tongue, 0.31 in W x 0.03 in THK Tongue, 600 VAC, Specifications: 0.2 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation, 105 deg C, Copper, Electroplated Tin, Blue
Additional Description: TB -14RB-6FLX EXP INS VNYL LKG FRK TERM, 18-14, #6,
Catalog Description: Expanded Vinyl-Insulated Locking Fork Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .200, Bolt Hole #6, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated
