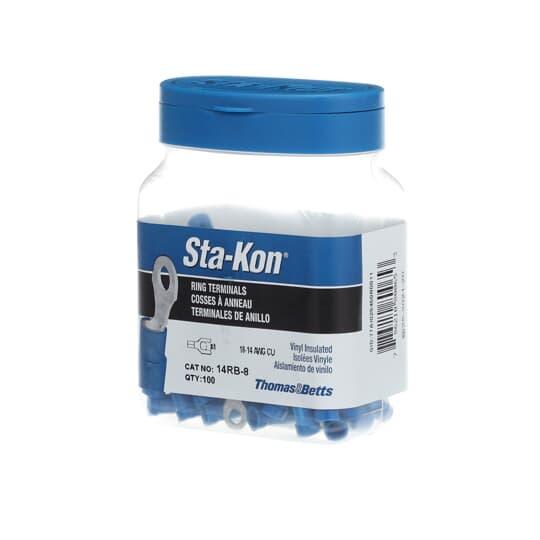

Thomas & Betts 14RB-8 Sta-Kon Ring Terminal
Part Number # 14RB-8
SKU # 38299
$99.18 / 100Each
Thomas & Betts 14RB-8 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 14RB-8 |
| SKU #: | 38299 |
| Barrel Type: | Brazed Seam |
| Conductor Size: | 18 to 14, 18 to 14 AWG |
| Finish: | TiN Coated |
| Series: | RB Series |
| Specifications: | 0.17 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Tongue Size: | 0.31 in W x 0.03 in THK |
| Tongue Type: | Ring |
| Type: | Insulated |
| Color: | Blue |
| Country of origin: | US |
| Length: | 0.97, 0.97 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210800653 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$99.18 / 100Each
Quantity:
- Sta-Kon Ring Terminal, Insulated, Series: RB Series, 18 to 14 AWG Conductor, #8 Stud, 0.97 in Length, Brazed Seam Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 600 V AC, 0.17 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation, 105 deg C, Copper, Tin Coated, Blue
14RB-8 Application
For WT145C, WT2000, WT112M, ERG4001 and ERG4003 tools14RB-8 Item Features
- Terminals are Self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wire flex point
- Brazed seam barrel that is serrated to obtain high pullout value
- Made of copper and has electro-tin plating for corrosion-resistance
- 100 pieces/pack
14RB-8 Standards
UL Listed|UL 94 V-0 Flammability Rated|UL File No. E9809|CSA CertifiedSKU #38299Part Number #14RB-8UNSPSC39121432UPC00786210800653
