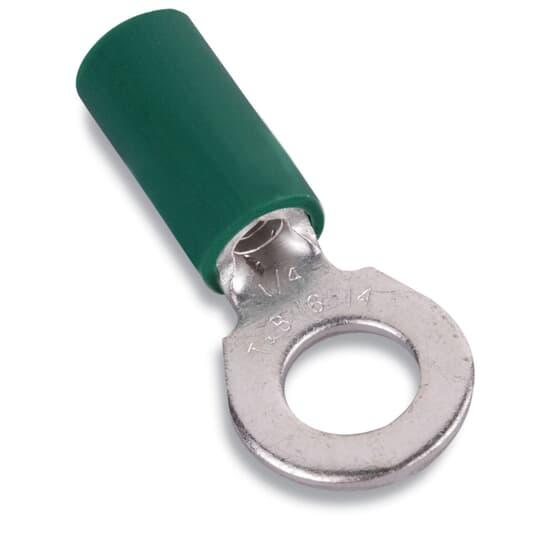

Thomas & Betts 14RBC-10 Sta-Kon Ring Terminal
Thomas & Betts 14RBC-10 Sta-Kon Ring Terminal
Part #:14RBC-10
SKU #: 387218
Key Features
Part #:14RBC-10
SKU #: 387218
Brand: Thomas & Betts
Barrel Type: Brazed/Overlapped Seam
Conductor Size: 16 to 14, 16 to 14 AWG
Finish: TiN Coated
Series: RB Series
Specifications: 0.21 in Dia Maximum Insulation, 0.29 in Clearance, Vinyl Insulation
- Terminal features funneled barrel entry that accepts heavily insulated wire and brazed or overlapping seams for proper electrical flow
- Deep internal serrations that prevents pullout from vibration and mechanical strain
- Made of copper and has electro-tin plating for corrosion-resistance
- 50 pieces/pack
Thomas & Betts 14RBC-10 Sta-Kon Ring Terminal
Sta-Kon Ring Terminal, Heavy Duty Insulated, Series: RB Series, 16 to 14 AWG Conductor, #10 Stud, 1.13 in Length, Brazed/Overlapped Seam Barrel, Ring Tongue, 0.39 in W x 0.03 in THK Tongue, 600 VAC, 0.21 in Dia Maximum Insulation, 0.29 in Clearance, Vinyl Insulation, 105 deg C, Copper, Tin Coated, Green
Additional Description: TB -14RBC-10 INS VIN RING TERM 16-14 HVDTY No10 GREE HEAVY DUTY RING
Catalog Description: Vinyl-Insulated Heavy-Duty Ring Terminal, Length 1.13 Inches, Width .39 Inches, Maximum Insulation .210, Bolt Hole #10, Wire Range #16-#14 Heavy Duty AWG, Color Green, Copper, Tin Plated
