Part Number # 14RBD-18377
SKU # 38310
Image Disclaimers Message
Brand: Thomas & Betts
14RBD-18377

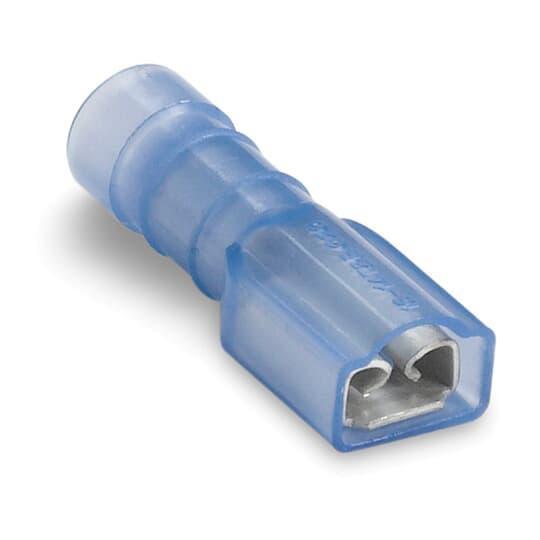

Thomas & Betts 14RBD-18377 Sta-Kon Female Disconnect
Part Number # 14RBD-18377
SKU # 38310
$136.60 / 100Each
Thomas & Betts 14RBD-18377 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 14RBD-18377 |
| SKU #: | 38310 |
| Barrel Type: | Internal Serration Long |
| Conductor Size: | 16 to 14, 16 to 14 AWG |
| Dimensions: | 0.89 in L x 0.3 in W |
| Finish: | Electroplated Tin |
| Insulated: | Fully Insulated |
| Series: | 187 |
| Specifications: | 0.17 in Dia Maximum Insulation, 0.03 in THK Stock |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Terminal Type: | Crimp |
| Color: | Blue |
| Country of origin: | US |
| Material: | Brass |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121447 |
| UPC: | 00786210818672 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$136.60 / 100Each
Quantity:
- Sta-Kon Female Disconnect, Series: 187, 16 to 14 AWG Conductor, 0.187 in W x 0.032 in THK Tab, Internal Serration Long Barrel, Crimp Terminal, 600 V AC, 0.17 in Dia Maximum Insulation, 0.03 in THK Stock, 105 deg C, Brass, Blue, Electroplated Tin, 0.89 in L x 0.3 in W, Insulated: Fully Insulated
14RBD-18377 Item Features
- Nylon fully insulated
- Unique construction of the female disconnect offers long term dependability
- Funnel entry insulators enable easier inserting of wire into barrel
- Internal barrel serrations and long barrel provide for maximum tensile strength
- Suitable for use with WT145C, WT2000, WT112M, ERG4001, ERG4003, ERG4001 tools
- Color-coded for easy installation
- Quick, reliable method of connection to terminal blocks and boards without the use of tools
14RBD-18377 Standards
UL E66716 / UL E66716SKU #38310Part Number #14RBD-18377UNSPSC39121447UPC00786210818672
