Part Number # 14RBD-188
SKU # 38312
14RBD-188

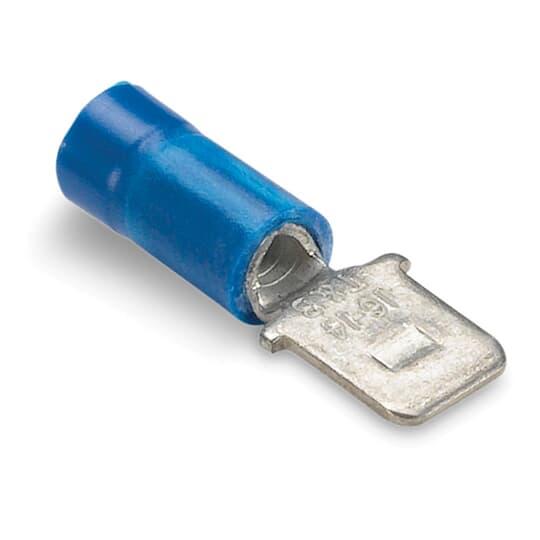

Thomas & Betts 14RBD-188 Sta-Kon Male Tab Disconnect
Part Number # 14RBD-188
SKU # 38312
Thomas & Betts 14RBD-188 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 14RBD-188 |
| SKU #: | 38312 |
| Dimensions: | 0.87 in L |
| Finish: | Electro Plated Tin |
| Series: | 187 |
| Specifications: | 0.17 in Dia Max Insulation, 0.03 in THK Stock, 0.17 in Max Insulation, 0.03 in Stock THK |
| UNSPSC: | 39121447 |
| UPC: | 00786210828824 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 14RBD-188 Sta-Kon Male Tab Disconnect
Brand: Thomas & Betts
Part Number: 14RBD-188
Sta-Kon Male Tab Disconnect, Insulated, Series: 187, 16 to 14 AWG Conductor, 0.187 in W x 0.02 in THK Tab, Crimp Terminal, 600 V, 0.17 in Dia Max Insulation, 0.03 in THK Stock, 105 deg C, Brass, Yellow, Electro-Tin Plated, 0.87 in L
Additional Description: TB -14RBD-188 INS VIN MALE-187 TAB 16-14 AWG BLUE 16-14 LE
Catalog Description: Vinyl-Insulated Male Tab, Length .87 Inches, Maximum Insulated .170, Tab Size .187x.020, Wire Range #16-#14 AWG, Color Blue, Copper, Tin Plated
14RBD-188 Standards
CSA Certified|UL94 V-0 Flammability Rating|UL File No. E66716SKU #38312Part Number #14RBD-188UNSPSC39121447UPC00786210828824
Image provided may only be a representation of final product and may include optional equipment
