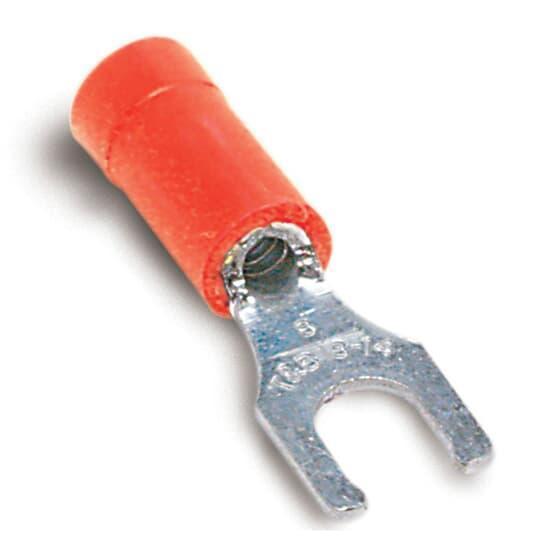

Thomas & Betts 18RA-10FL Sta-Kon Fork Terminal
Thomas & Betts 18RA-10FL Sta-Kon Fork Terminal
Part #:18RA-10FL
SKU #: 38326
Key Features
Part #:18RA-10FL
SKU #: 38326
Brand: Thomas & Betts
Barrel Type: Brazed Seam/Serrated
Conductor Size: 22 to 16, 22 to 16 AWG
Finish: Electroplated Tin
Series: RA Series
Specifications: 0.15 in Dia Maximum Insulation, 1/4 in Clearance, Vinyl Insulation
- Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring
- Brazed seam barrel is serrated for high pull-out value
- Insulation is Color coded
- WT112M, WT145C, WT2000, ERG4001, ERG4003 recommended tools
Thomas & Betts 18RA-10FL Sta-Kon Fork Terminal
Sta-Kon Fork Terminal, Insulated, Series: RA Series, 22 to 16 AWG Conductor, #10 Stud, 0.97 in Length, Brazed Seam/Serrated Barrel, Locking Fork Tongue, 0.29 in W x 0.02 in THK Tongue, 600 VAC, Specifications: 0.15 in Dia Maximum Insulation, 1/4 in Clearance, Vinyl Insulation, 105 deg C, Copper, Electroplated Tin, Red
Additional Description: TB -18RA-10FL INS VIN LKG FRK TRM 22-16 BLT No10 #10, RED
Catalog Description: Vinyl-Insulated Locking Fork Terminal, Length .97 Inches, Width .29 Inches, Maximum Insulation .150, Bolt Hole #10, Wire Range #22-#16 AWG, Color Red, Copper, Tin Plated
