Part Number # 18RA-10FLX
SKU # 38327
18RA-10FLX

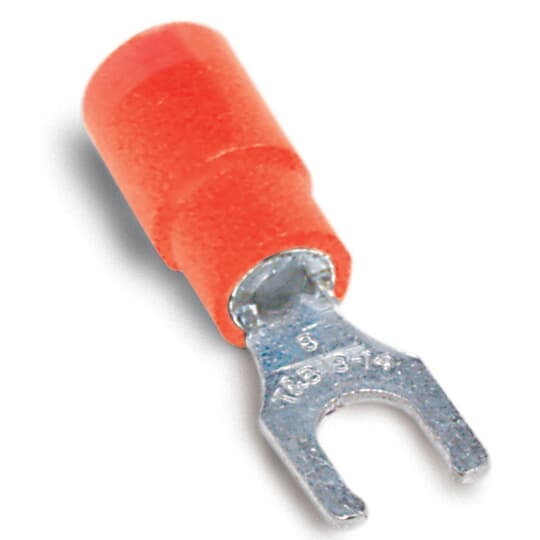

Thomas & Betts 18RA-10FLX Sta-Kon Fork Terminal
Part Number # 18RA-10FLX
SKU # 38327
Thomas & Betts 18RA-10FLX Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 18RA-10FLX |
| SKU #: | 38327 |
| Barrel Type: | Brazed Seam/Serrated |
| Conductor Size: | 22 to 16, 22 to 16 AWG |
| Finish: | Electroplated Tin |
| Series: | RA Series |
| Specifications: | 0.17 in Dia Maximum Insulation, 1/4 in Clearance, Vinyl Insulation |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Tongue Size: | 0.29 in W x 0.02 in THK |
| Tongue Type: | Locking Fork |
| Type: | Expanded Insulated |
| Country of origin: | US |
| Length: | 0.97, 0.97 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210806495 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 18RA-10FLX Sta-Kon Fork Terminal
Brand: Thomas & Betts
Part Number: 18RA-10FLX
Sta-Kon Fork Terminal, Expanded Insulated, Series: RA Series, 22 to 16 AWG Conductor, #10 Stud, 0.97 in Length, Brazed Seam/Serrated Barrel, Locking Fork Tongue, 0.29 in W x 0.02 in THK Tongue, 600 VAC, Specifications: 0.17 in Dia Maximum Insulation, 1/4 in Clearance, Vinyl Insulation, 105 deg C, Copper, Electroplated Tin, Red
Additional Description: TB -18RA-10FLX EXP INS VINYL LKG FORK TERM, 22-16 #10,
Catalog Description: Expanded Vinyl-Insulated Locking Fork Terminal, Length .97 Inches, Width .29 Inches, Maximum Insulation .170, Bolt Hole #10, Wire Range #22-#16 AWG, Color Red, Copper, Tin Plated
18RA-10FLX Item Features
- Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring
- Brazed seam barrel is serrated for high pull-out value
- Insulation is Color coded
- WT112M, WT145C, WT2000, ERG4001, ERG4003 recommended tools
18RA-10FLX Standards
UL E9809 / UL E9809SKU #38327Part Number #18RA-10FLXUNSPSC39121432UPC00786210806495
Image provided may only be a representation of final product and may include optional equipment
