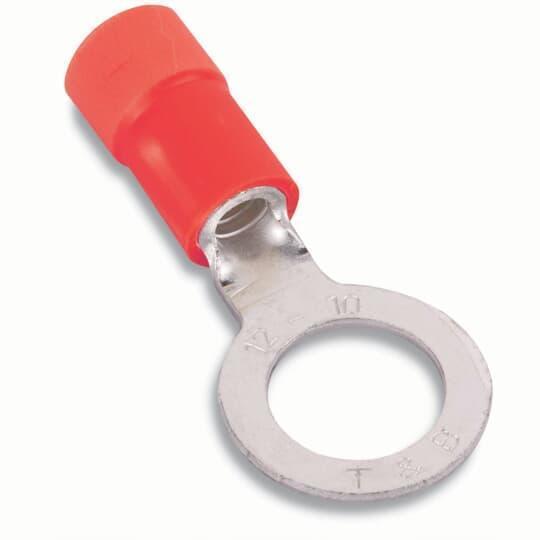

Thomas & Betts 18RA-14X Sta-Kon Ring Terminal
Thomas & Betts 18RA-14X Sta-Kon Ring Terminal
Part #:18RA-14X
SKU #: 45402
Key Features
Part #:18RA-14X
SKU #: 45402
Brand: Thomas & Betts
Barrel Type: Brazed Seam
Conductor Size: 22 to 16, 22 to 16 AWG
Finish: TiN Coated
Series: RA Series
Specifications: 0.17 in Dia Maximum Insulation, 0.37 in Clearance, Vinyl Insulation
- Suffix X indicate an expanded insulation grip, means a wider wire entry to accommodate heavy wall insulation, Self-insulated with a PVC (vinyl) insulation sleeve of extra length to give protection and relieve bending stress at wire flex point
- Brazed seam barrel that is serrated to obtain high pullout value
- Made of copper and has electro-tin plating for corrosion-resistance
- Ring terminals wont fall-free even if the mounting screw loosens
- 100 pieces/pack
Thomas & Betts 18RA-14X Sta-Kon Ring Terminal
Sta-Kon Ring Terminal, Expanded Insulated, Series: RA Series, 22 to 16 AWG Conductor, 1/4 in Stud, 1.13 in Length, Brazed Seam Barrel, Ring Tongue, 0.5 in W x 0.03 in THK Tongue, 600 VAC, 0.17 in Dia Maximum Insulation, 0.37 in Clearance, Vinyl Insulation, 105 deg C, Copper, Tin Coated, Red
Additional Description: TB -18RA-14X EXP INS VINYL RING TERM, 22-16, 1/4 1/4, RED VINYL EXPANDED INSULATION
Catalog Description: Expanded Vinyl-Insulated Ring Terminal, Length 1.13 Inches, Width .50 Inches, Maximum Insulation .170, Bolt Hole 1/4 Inch, Wire Range #22-#16 AWG, Color Red, Copper, Tin Plated
