Part Number # 18RA-2577
SKU # 38334
Image Disclaimers Message
18RA-2577

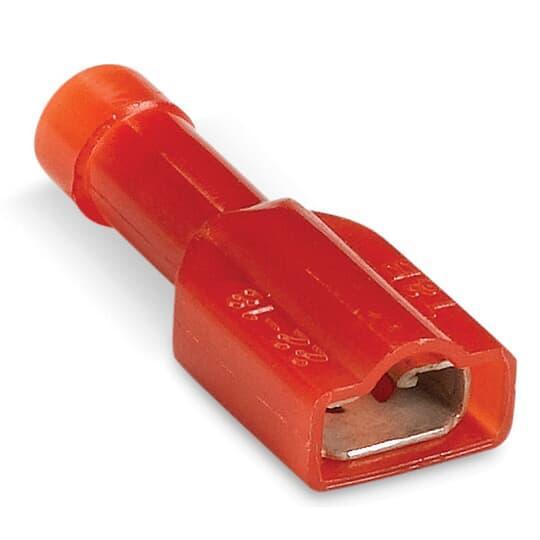

Thomas & Betts 18RA-2577 Sta-Kon Female Disconnect
Part Number # 18RA-2577
SKU # 38334
Thomas & Betts 18RA-2577 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 18RA-2577 |
| SKU #: | 38334 |
| Barrel Type: | Brazed Seam |
| Conductor Size: | 22 to 18, 22 to 18 AWG |
| Dimensions: | 1.01 in L x 0.38 in W |
| Finish: | Electroplated Tin |
| Insulated: | Insulated |
| Series: | 250 |
| Specifications: | 0.165 in Dia Maximum Insulation, 0.03 in THK Stock |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Terminal Type: | Crimp |
| Country of origin: | US |
| Material: | Brass |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121447 |
| UPC: | 00786210839332 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 18RA-2577 Sta-Kon Female Disconnect
Brand: Thomas & Betts
Part Number: 18RA-2577
Sta-Kon Female Disconnect, Series: 250, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brazed Seam Barrel, Crimp Terminal, 600 VAC, 0.165 in Dia Maximum Insulation, 0.03 in THK Stock, 105 deg C, Brass, Red, Electroplated Tin, 1.01 in L x 0.38 in W, Insulated: Insulated
Additional Description: TB -18RA-2577 FULLY INS NYLON FEM DISCONNECT 22-18 L.250
Catalog Description: Nylon Fully Insulated Female Disconnect, Length 1.01 Inches, Width 0.38 Inch, Maximum Insulation 0.165, Tab Size 0.25x0.032, Wire Range 22-18 AWG, Color Red, Brass, Tin Plated, 50 Pack
18RA-2577 Item Features
- Nylon fully insulated
- Unique construction of the female disconnect offers long term dependability
- Funnel entry insulators enable easier inserting of wire into barrel
- Brazed seam serrated barrel provides maximum tensile strength
- Suitable for use with WT145C, WT2000, WT112M, ERG4001, ERG4003 tools
- Color-coded for easy installation
18RA-2577 Standards
UL E66716 / UL E66716SKU #38334Part Number #18RA-2577UNSPSC39121447UPC00786210839332
