Part Number # 18RA-8FX
SKU # 2386628
Image Disclaimers Message
Brand: Thomas & Betts
18RA-8FX
Thomas & Betts 18RA-8FX
Part Number # 18RA-8FX
SKU # 2386628
$122.43 / 100Each
Thomas & Betts 18RA-8FX Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 18RA-8FX |
| SKU #: | 2386628 |
| Barrel Type: | Brazed Seam/Serrated |
| Conductor Size: | 22 to 16 AWG |
| Finish: | Electroplated Tin |
| Series: | RA Series |
| Specifications: | 0.17 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation |
| Temperature Rating (Degrees F): | 105 deg C |
| Tongue Size: | 0.31 in W x 0.02 in THK |
| Tongue Type: | Fork |
| Type: | Expanded Insulated |
| Color: | Red |
| Country of origin: | US |
| Length: | 0.97 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210800905 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$122.43 / 100Each
Quantity:

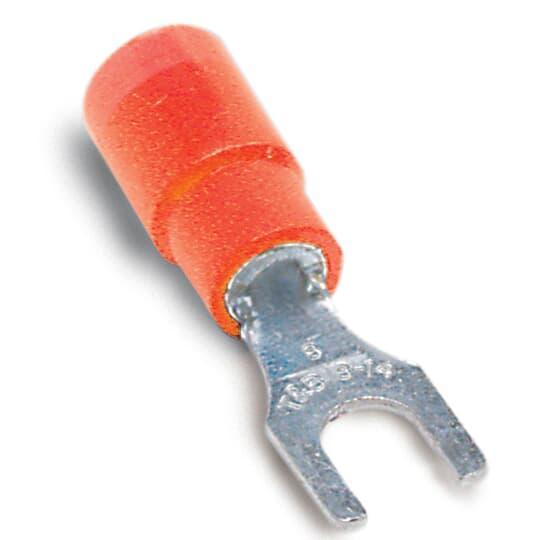

- Sta-Kon Fork Terminal, Expanded Insulated, Series: RA Series, 22 to 16 AWG Conductor, #8 Stud, 0.97 in Length, Brazed Seam/Serrated Barrel, Fork Tongue, 0.31 in W x 0.02 in THK Tongue, 600 VAC, Specifications: 0.17 in Dia Maximum Insulation, 0.27 in Clearance, Vinyl Insulation, 105 deg C, Copper, Electroplated Tin, Red
18RA-8FX Item Features
- Fork terminals allow easy installation since the mounting screw does not have to be completely removed
- Brazed seam barrel is serrated for high pull-out value
- Insulation is Color coded
- Terminals have expanded insulation support which means a wider wire entry to accommodate heavy wall insulation
- WT112M, WT145C, WT2000, ERG4001, ERG4003 recommended tools
18RA-8FX Standards
CSA Certified|UL 94 V-0 Flammability Rated|UL File No. E9809SKU #2386628Part Number #18RA-8FXUNSPSC39121432UPC00786210800905
