18RAD-182

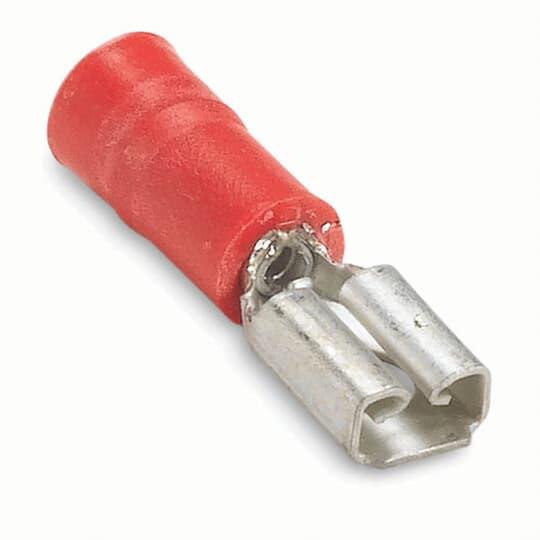

Thomas & Betts 18RAD-182 Sta-Kon Female Disconnect
Part Number # 18RAD-182
SKU # 38345
$128.97 / 100Each
Thomas & Betts 18RAD-182 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 18RAD-182 |
| SKU #: | 38345 |
| Barrel Type: | Internal Serration Long |
| Conductor Size: | 22 to 18, 22 to 18 AWG |
| Dimensions: | 0.85 in L x 0.23 in W |
| Finish: | Electroplated Tin |
| Insulated: | Insulated |
| Series: | 187 |
| Specifications: | 0.15 in Dia Maximum Insulation, 0.03 in THK Stock |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Terminal Type: | Crimp |
| Color: | Red |
| Country of origin: | US |
| Material: | Brass |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121447 |
| UPC: | 00786210818726 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$128.97 / 100Each
Quantity:
- Sta-Kon Female Disconnect, Series: 187, 22 to 18 AWG Conductor, 0.187 in W x 0.02 in THK Tab, Internal Serration Long Barrel, Crimp Terminal, 600 VAC, 0.15 in Dia Maximum Insulation, 0.03 in THK Stock, 105 deg C, Brass, Red, Electroplated Tin, 0.85 in L x 0.23 in W, Insulated: Insulated
18RAD-182 Item Features
- Vinyl insulated
- Unique construction of the female disconnect offers long term dependability
- Funnel entry insulators enable easier inserting of wire into barrel
- Internal barrel serrations and long barrel provide for maximum tensile strength
- Suitable for use with WT145C, WT2000, WT112M, ERG4001, ERG4003, ERG4001 tools
- Color-coded for easy installation
- Quick, reliable method of connection to terminal blocks and boards without the use of tools
18RAD-182 Standards
CSA Certified|UL 94 V-0 Flammability Rating|UL File No. E66716SKU #38345Part Number #18RAD-182UNSPSC39121447UPC00786210818726
