Part Number # 18RAD-187
SKU # 38349
18RAD-187

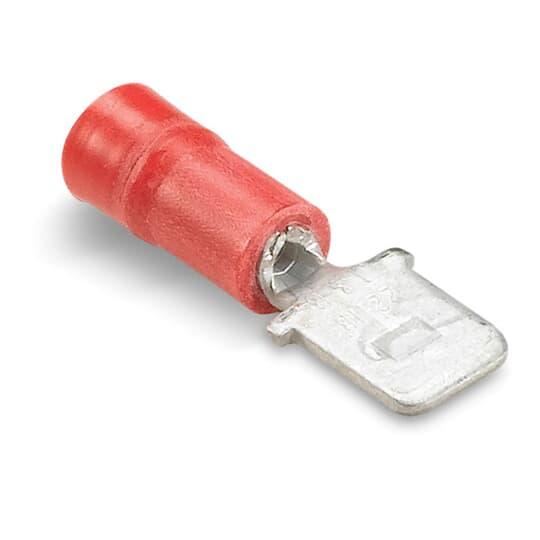

Thomas & Betts 18RAD-187 Sta-Kon Male Tab
Part Number # 18RAD-187
SKU # 38349
Thomas & Betts 18RAD-187 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 18RAD-187 |
| SKU #: | 38349 |
| Conductor Size: | 22 to 18, 22 to 18 AWG |
| Dimensions: | 0.87 in L |
| Finish: | Electro Plated Tin |
| Series: | 187 |
| Specifications: | 0.15 in Max Insulation, 0.03 in Stock |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Terminal Type: | Crimp |
| Type: | Insulated |
| Country of origin: | US |
| Material: | Brass |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121447 |
| UPC: | 00786210828848 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 18RAD-187 Sta-Kon Male Tab
Brand: Thomas & Betts
Part Number: 18RAD-187
Sta-Kon Male Tab, Insulated, Series: 187, 22 to 18 AWG Conductor, 0.187 in W x 0.032 in THK Tab, Crimp Terminal, 600 VAC, 0.03 in THK Stock, 0.15 in Dia Maximum Vinyl Insulation, 105 deg C, Brass/Copper, Red, Tin Electro-Plated, 0.87 in L
Additional Description: TB -18RAD-187 INS VINYL MALE - 187 TAB 22-18 RED 22-18 LE
Catalog Description: Vinyl-Insulated Male Tab, Length .87 Inches, Maximum Insulated .150, Tab Size .187x.032, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated
18RAD-187 Standards
UL E66716 / UL E66716SKU #38349Part Number #18RAD-187UNSPSC39121447UPC00786210828848
Image provided may only be a representation of final product and may include optional equipment
