Part Number # 1H
SKU # 1907
Image Disclaimers Message
1H

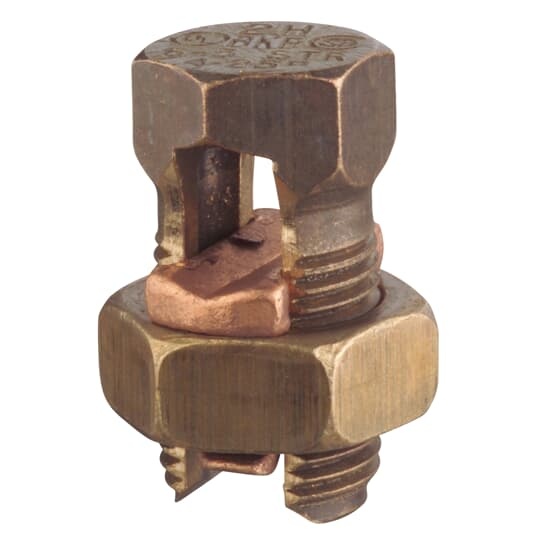

Thomas & Betts 1H Fittings Split Bolt Connector
Part Number # 1H
SKU # 1907
$1031.25 / 100Each
Thomas & Betts 1H Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 1H |
| SKU #: | 1907 |
| Conductor Size: | 6 to 2, 6 to 2 AWG |
| Conductor Type: | Copper Plated, Solid/Stranded Copper |
| Dimensions: | 1-11/32 in H x 7/8 in W, 1-11/32 in L x 7/8 in W |
| Specifications: | 0.33 in Split, 7/8 in Hex Nut |
| Type: | High Strength Type H, Type H High Strength |
| Color: | Metallic |
| Country of origin: | MX |
| Material: | Bronze Alloy |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121408 |
| UPC: | 00783786200122 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1031.25 / 100Each
Quantity:
Thomas & Betts 1H Fittings Split Bolt Connector
Brand: Thomas & Betts
Part Number: 1H
Blackburn Split Bolt Connector, Type H High Strength, Solid/Stranded Copper Conductor, 6 to 2 AWG Conductor, 11/16 x 1-11/32 in Bolt, 0.33 in Split, 7/8 in Hex Nut, Bronze Alloy, Metallic
Additional Description: TB -1H S-BOLT 2 STR - 6 SOL CU
Catalog Description: Type H - High Strength Split-Bolt Connector, Conductor Range for Equal Main and Tap 2 Str-6 Sol, Conductor Range for Min Tap with One Max Main 14 Sol
1H Specifications
- Bolt and nut of high strength corrosion-resistant bronze alloy
- Copper pressure bar, bolt and nut of hex design
- 2 AWG stranded - 6 AWG solid range for equal main and tap
- 14 AWG solid minimum tap with one maximum main
1H Application
For splicing, tapping or terminating conductors in power and grounding electrical connection1H Item Features
- Bolt and nut of high strength corrosion resistant bronze alloy
- Copper pressure bar
- Bolt and nut of hex design
- Splicing, tapping or terminating conductors in power and grounding electrical connection
1H Standards
CSA Certified|UL ListedSKU #1907Part Number #1HUNSPSC39121408UPC00783786200122
