Part Number # 204210-1H
SKU # 38355
Image Disclaimers Message
204210-1H

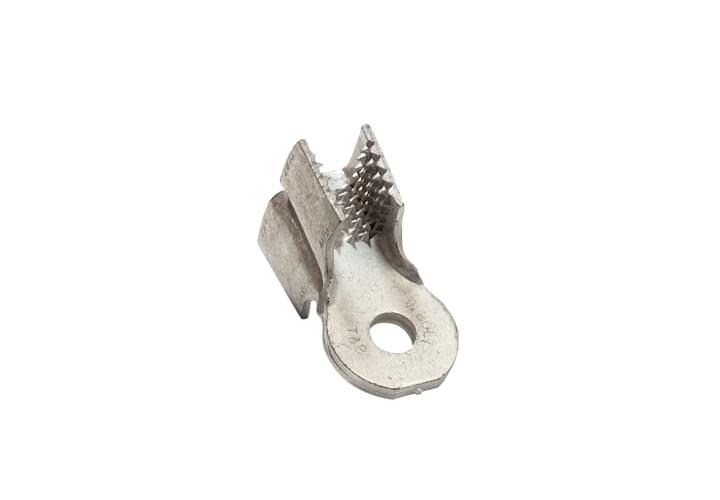

Thomas & Betts 204210-1H Sta-Kon Ring Terminal
Part Number # 204210-1H
SKU # 38355
$737.75 / 100Each
Thomas & Betts 204210-1H Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 204210-1H |
| SKU #: | 38355 |
| Barrel Size: | 0.61 in L x 0.53 in W |
| Conductor Size: | 12 to 4 AWG |
| Conductor Type: | Aluminum/Copper |
| Finish: | Tin Plated |
| Specifications: | 0.1 to 0.16 in THK, 20760 to 104960 kcmil |
| Tongue Size: | 0.81 in W |
| Tongue Type: | Ring |
| Type: | Insulation Piercing Magnet Wire |
| Country of origin: | US |
| Length: | 1.58 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210878195 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$737.75 / 100Each
Quantity:
- Dragon Tooth Ring Terminal, Insulation Piercing Magnet Wire, Aluminum/Copper Conductor, 12 to 4 AWG Conductor, 1/4 in Stud, 1.58 in Length, 0.61 in L x 0.53 in W Barrel, Ring Tongue, 0.81 in W Tongue, Specifications: 0.1 to 0.16 in THK, 20760 to 104960 kcmil, Copper, Tin Plated
204210-1H Application
For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections204210-1H Includes
Male and Female 0.25 x 0.032 in Disconnect204210-1H Item Features
- Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire
- Can be installed in seconds
- Requires minimal training for installation
- Supplied with bolt holes to accommodate #6 through 1/2 in studs
204210-1H Standards
UL E9809 / UL E9809SKU #38355Part Number #204210-1HUNSPSC39121432UPC00786210878195
