Part Number # 204217
SKU # 38360
204217
Thomas & Betts 204217 Sta-Kon Ring Terminal
Part Number # 204217
SKU # 38360
Thomas & Betts 204217 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 204217 |
| SKU #: | 38360 |
| Barrel Size: | 0.61 in L x 0.53 in W |
| Conductor Size: | 12 to 4 AWG |
| Conductor Type: | Aluminum/Copper |
| Finish: | Tin Plated |
| Specifications: | 0.1 to 0.16 in THK, 10380 to 52480 kcmil |
| Tongue Size: | 1/2 in W |
| Tongue Type: | Ring |
| Type: | Insulation Piercing Magnet Wire |
| Country of origin: | US |
| Length: | 1.58 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210867649 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 204217 Sta-Kon Ring Terminal
Brand: Thomas & Betts
Part Number: 204217

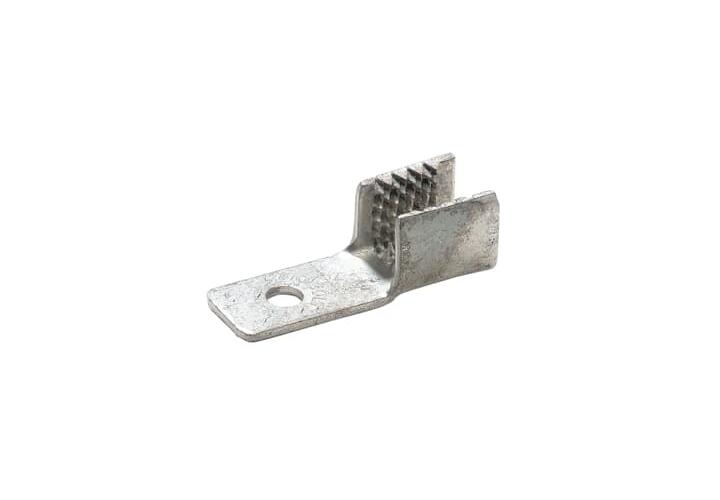

Dragon Tooth Ring Terminal, Insulation Piercing Magnet Wire, Aluminum/Copper Conductor, 12 to 4 AWG Conductor, #10 Stud, 1.58 in Length, 0.61 in L x 0.53 in W Barrel, Ring Tongue, 1/2 in W Tongue, Specifications: 0.1 to 0.16 in THK, 10380 to 52480 kcmil, Copper, Tin Plated
Additional Description: TB -204217 RING TERM CU 12-4 AWG NO10 STUD .53X.
Catalog Description: Insulation Piercing Magnet Wire Ring Terminal, Length 1.58 Inches, Width .50 Inches, Length of Teeth .61 Inches, Width of Teeth .53 Inches, Stud Size 10, Wire Range #12 AWG - #4 AWG 10,380 Circular Mil Area - 52,480 Circular Mil Area, Copper Alloy, Tin Plated
204217 Application
For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections204217 Includes
Male and Female 0.25 x 0.032 in Disconnect204217 Item Features
- Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire
- Can be installed in seconds
- Requires minimal training for installation
- Supplied with bolt holes to accommodate #6 through 1/2 in studs
204217 Standards
UL File No. E9809SKU #38360Part Number #204217UNSPSC39121432UPC00786210867649
Image provided may only be a representation of final product and may include optional equipment
