Part Number # 210214-1
SKU # 2457784

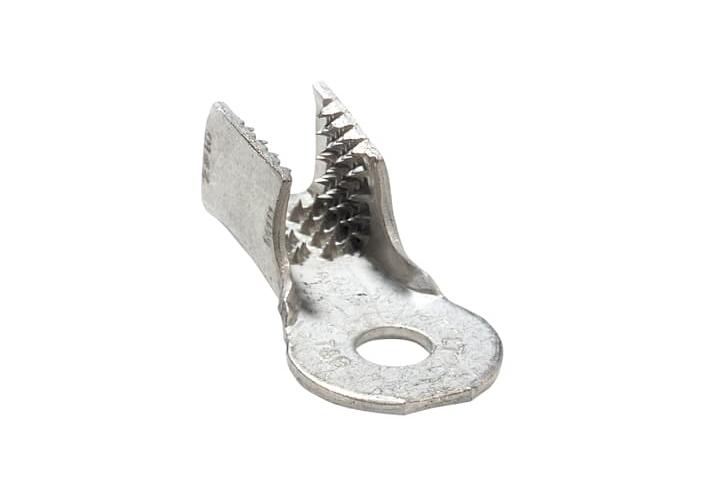

Image provided may only be a representation of
final product and may include optional equipment
210214-1
Thomas & Betts 210214-1
Part Number # 210214-1
SKU # 2457784
Thomas & Betts 210214-1 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 210214-1 |
| SKU #: | 2457784 |
| Conductor Size: | 14 to 10 AWG |
| Finish: | Tin Plated |
| Specifications: | 0.56 in L x 0.38 in W Teeth, 4110 to 20760 mil Circular Area |
| Tongue Size: | 0.69 in W |
| Tongue Type: | Ring |
| Type: | Insulation Piercing Magnet Wire |
| Country of origin: | US |
| Length: | 1.41 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210072197 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 210214-1
Brand: Thomas & Betts
Part Number: 210214-1
Sta-Kon® Ring Terminal, Insulated Piercing Magnet, 14 to 10 AWG Conductor, 1/4 in Stud, 1.41 in Length, Ring Tongue, 0.69 in W Tongue, 4110 to 20760 mil Circular Area, 0.56 in L x 0.38 in W Teeth, Copper, Tin Plated
Additional Description: TB -210214-1 RING TERM CU 12-4 AWG NO10 BOLT
Catalog Description: Insulation Piercing Magnet Wire Ring Terminal, Length 1.41 Inches, Width .69 Inches, Length of Teeth .56 Inches, Width of Teeth .38 Inches, Stud Size 1/4 Inch, Wire Range #14 AWG - #10 AWG 4,110 Circular Mil Area - 20,760 Circular Mil Area, Copper Alloy, Tin Plated
210214-1 Application
For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections, 13100A, 13400, 13642M and TBM15L hydraulic tools210214-1 Item Features
- Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire
- Insulation piercing magnet wire
- 0.08 to 0.09 in T x 0.08 to 0.18 in W rectangular wire range
- 250 Pieces/Pack
210214-1 Standards
UL File No. E9809SKU #2457784Part Number #210214-1UNSPSC39121432UPC00786210072197
