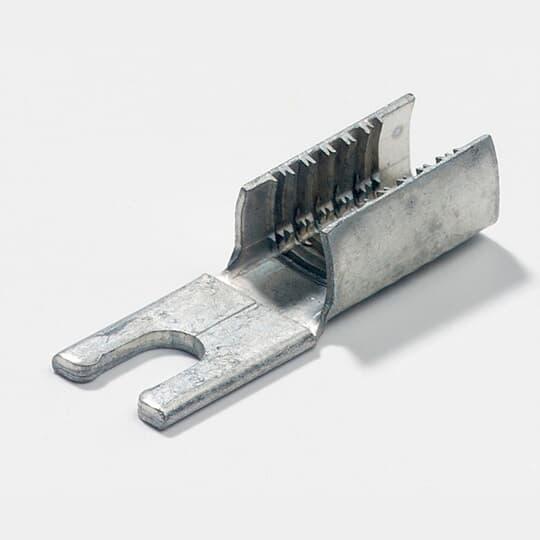

Thomas & Betts 22F061 Sta-Kon Fork Terminal
Part Number # 22F061
SKU # 2282269
Thomas & Betts 22F061 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 22F061 |
| SKU #: | 2282269 |
| Barrel Size: | 0.32 in L x 0.16 in W |
| Conductor Size: | 24 to 15, 24 to 15 AWG |
| Conductor Type: | Aluminum/Copper |
| Finish: | Tin Plated |
| Specifications: | 0.32 in L x 0.16 in W Teeth, 404 to 4100 mil Circular Area |
| Tongue Size: | 0.3 in W |
| Tongue Type: | Fork |
| Type: | Insulation Piercing Magnet Wire |
| Country of origin: | US |
| Length: | 0.78, 0.78 in |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121432 |
| UPC: | 00786210811314 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 22F061 Sta-Kon Fork Terminal
Brand: Thomas & Betts
Part Number: 22F061
Dragon Tooth Fork Terminal, Insulation Piercing Magnet Wire, Aluminum/Copper Conductor, 24 to 15 AWG Conductor, #6 Stud, 0.78 in Length, 0.32 in L x 0.16 in W Barrel, Fork Tongue, 0.3 in W Tongue, Specifications: 0.32 in L x 0.16 in W Teeth, 404 to 4100 mil Circular Area, Copper, Tin Plated
Additional Description: TB -22F061 (N) FORK TERM CU 24-15 AWG NO6 STUD NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Insulation Piercing Magnet Wire Fork Terminal, Length .78 Inches, Width .30 Inches, Length of Teeth .32 Inches, Width of Teeth .16 Inches, Stud Size 6, Wire Range #24 AWG - #15 AWG 404 Circular Mil Area - 4,100 Circular Mil Area, Copper Alloy, Tin Plated
22F061 Application
For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections22F061 Item Features
- Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire
22F061 Standards
UL File No. E9809SKU #2282269Part Number #22F061UNSPSC39121432UPC00786210811314
