Part Number # 2439
SKU # 2324556
Image Disclaimers Message
Brand: Thomas & Betts
2439

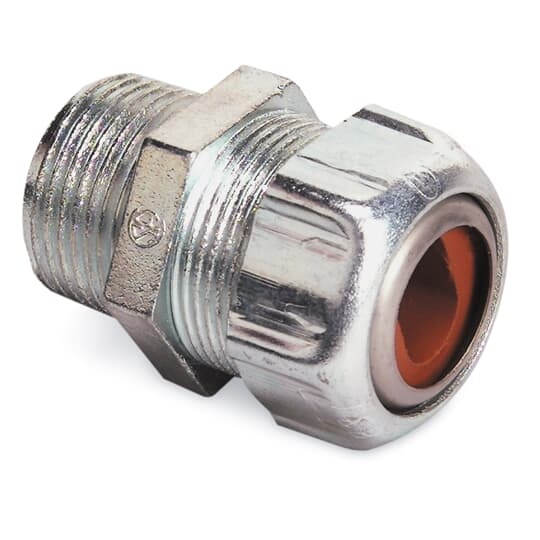

Thomas & Betts 2439 Watertight Cable Connector
Part Number # 2439
SKU # 2324556
$1997.27 / 100Each
Typical price:$2676.30 / Each
Thomas & Betts 2439 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 2439 |
| SKU #: | 2324556 |
| Cable Openings: | 0.51 x 0.85 in to 0.635 x 0.975 in, 0.51 x 0.85 to 0.635 x 0.975 |
| Dimensions: | 1-3/4 in L x 1-1/2 in W |
| Finish: | Zinc Plated |
| Trade Size: | 1, 1 in |
| Cable type: | Oval |
| Color: | Metallic |
| Connection type: | Thread, Threaded |
| Country of origin: | US |
| Material: | Die Cast Zinc |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121431 |
| UPC: | 00786210024394 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1997.27 / 100Each
Typical price:$2676.30 / Each
Quantity:
Thomas & Betts 2439 Watertight Cable Connector
Brand: Thomas & Betts
Part Number: 2439
T&B Watertight Cable Connector, 1 in, Cable Openings: 0.51 x 0.85 in to 0.635 x 0.975 in, Oval Cable, Thread, Die Cast Zinc, Zinc Plated, Metallic, 1-3/4 in L x 1-1/2 in W
Additional Description: TB -2439 (N) 1IN WATERT CONN .51X.85-.565X.855 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Watertight Connector for Oval Cable, Hub Size 1 Inch, Die Cast Zinc Body with Neoprene Bushing, Oval Cable Range Maximum .635 X .975 Inch, Minimum .510 X .850 Inch
2439 Application
For connecting underground feeder cables to a box or an enclosure2439 Item Features
- Design with two tapers inside the body-a slow one and a fast one-permits the stocking of fewer connectors for varied cable sizes and allows maximum take-up
- Neoprene bushing, resists oil and water, grips cable the full length of the bushing providing adequate strain relief without damaging outer jacket
- Hex gland and body take the same wrench opening and a stainless steel slip ring prevents cable from twisting as gland ring is being tightened
- Threads on the body are tapered for water sealing
- Stainless steel retaining ring protects cable jacket against abrasion, reduces installing torque effort
- Rugged ribbed steel gland construction
- 1-3/4 in max body corners
- 1-11/16 in max gland corners
- A design with two tapers inside the body, a slow one and a fast one permits the stocking of fewer connectors for varied cable sizes and allows maximum take up
2439 Standards
ANSI NFPA 70-2009|CSA 589/4484|CSA C22.2 File No. 18.3|Federal Specification H-28|NEMA FB-1|UL 514B File No. E15170SKU #2324556Part Number #2439UNSPSC39121431UPC00786210024394
