Part Number # 2454
SKU # 2240698
Image Disclaimers Message
Brand: Thomas & Betts
2454

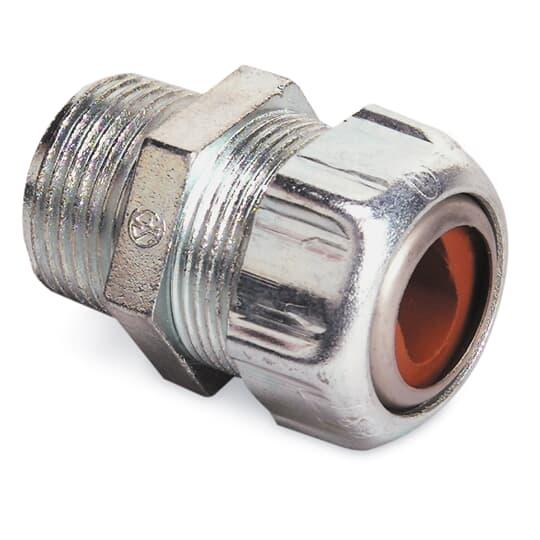

Thomas & Betts 2454 Watertight Cable Connector
Part Number # 2454
SKU # 2240698
$234.02 / 5Each
Typical price:$313.59 / Each
Thomas & Betts 2454 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 2454 |
| SKU #: | 2240698 |
| Cable Openings: | 0.655 x 1.09 in to 0.84 x 1.275 in, 0.655 x 1.09 to 0.84 x 1.275 |
| Dimensions: | 2-1/4 in L x 2-1/8 in W |
| Finish: | Zinc Plated |
| Trade Size: | 1-1/2, 1-1/2 in |
| Cable type: | Oval |
| Color: | Metallic |
| Connection type: | Thread, Threaded |
| Country of origin: | CA |
| Material: | Die Cast Zinc |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121431 |
| UPC: | 00786210024547 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$234.02 / 5Each
Typical price:$313.59 / Each
Quantity:
- T&B Watertight Cable Connector, 1-1/2 in, Cable Openings: 0.655 x 1.09 in to 0.84 x 1.275 in, Oval Cable, Thread, Die Cast Zinc, Zinc Plated, Metallic, 2-1/4 in L x 2-1/8 in W
2454 Application
For connecting underground feeder cables to a box or an enclosure2454 Item Features
- Design with two tapers inside the body-a slow one and a fast one-permits the stocking of fewer connectors for varied cable sizes and allows maximum take-up
- Neoprene bushing, resists oil and water, grips cable the full length of the bushing providing adequate strain relief without damaging outer jacket
- Hex gland and body take the same wrench opening and a stainless steel slip ring prevents cable from twisting as gland ring is being tightened
- Threads on the body are tapered for water sealing
- Stainless steel retaining ring protects cable jacket against abrasion, reduces installing torque effort
- Rugged ribbed steel gland construction
- 2-5/16 in max body corners
- 11/16 in L thread
- 2-5/16 in max gland corners
- A design with two tapers inside the body, a slow one and a fast one permits the stocking of fewer connectors for varied cable sizes and allows maximum take up
2454 Standards
ANSI NFPA 70-2009|CSA 589/4484|CSA C22.2 File No. 18.3|Federal Specification H-28|NEMA FB-1|UL 514B File No. E15170SKU #2240698Part Number #2454UNSPSC39121431UPC00786210024547
