Brand: Thomas & Betts

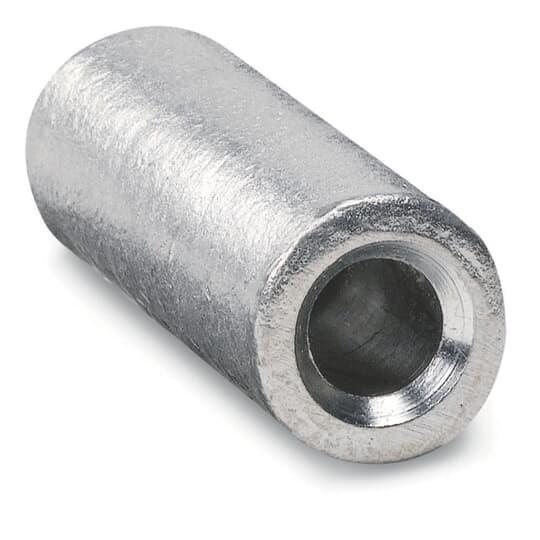

Thomas & Betts 251-30485-610 Color-Keyed Reducing Splice Connector
Part Number # 251-30485-610
SKU # 2376294

Brand: Thomas & Betts
251-30485-610
Thomas & Betts 251-30485-610 Color-Keyed Reducing Splice Connector
Part Number # 251-30485-610
SKU # 2376294
$1539.57 / 10Each
Typical price:$2063.02 / Each
Thomas & Betts 251-30485-610 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 251-30485-610 |
| SKU #: | 2376294 |
| Conductor Size: | 8 to 6 AWG |
| Outside Diameter: | 3/8 in |
| Specifications: | Chamfered Barrel, Non-Insulated, Tin Plated |
| Type: | 2-Way Compact |
| Length: | 1-7/32 in |
| Material: | Cast Copper |
| UNSPSC: | 39121449 |
| UPC: | 00786210979427 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
$1539.57 / 10Each
Typical price:$2063.02 / Each
Quantity:
- Color-Keyed Reducing Splice Connector, 2-Way Compact, Stranded Copper Conductor, 8 to 6 AWG Conductor, Die Code: 29, 600 V, Compression Connection, 3/8 in OD, 1-7/32 in Length, Specifications: Chamfered Barrel, Non-Insulated, Tin Plated, Cast Copper, Gray Color Code
251-30485-610 Application
For telecommunication (inside office/outside plant), commercial, industrial MRO and any other 600 V to 35 kV applications requiring splicing of different-sized conductors251-30485-610 Item Features
- TiN coated, sand-cast copper construction provides superior tensile strength, high conductivity, and excellent corrosion resistance
- Easier to install and insulate than screw-machined, contour-designed reducing splices
- Constant OD saves time on installation by eliminating the need for crimp tool/die change
- Fast and simple to insulate with clear or colored heat-shrink wrap
- Chamfered barrel facilitates easy wire insertion
- Compact, low-profile design takes up minimal space in cable tray or wire run
- https://www.youtube.com/watch?v=NuIb1ux2RVY
251-30485-610 Standards
CSA Certified|UL File No. E9809SKU #2376294Part Number #251-30485-610UNSPSC39121449UPC00786210979427
Image provided may only be a representation of final product and may include optional equipment
