Brand: Thomas & Betts

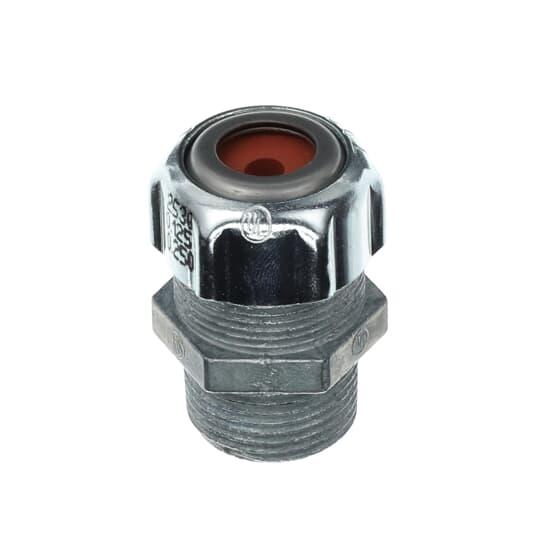

Thomas & Betts 2530 Cord Connector
Image Disclaimers Message
Brand: Thomas & Betts
Thomas & Betts 2530 Cord Connector
Brand: Thomas & Betts
Thomas & Betts 2530 Cord Connector
Part #:2530
SKU #: 38411
$137.10/10EA
Key Features
Part #:2530
SKU #: 38411
Brand: Thomas & Betts
Cable Openings: 1/8 to 1/4, 1/8 to 1/4 in
Dimensions: 1-3/8 in Dia x 1-3/4 in L
Finish: Zinc Plated
Series: Ranger, Ranger®
Temperature Rating (Degrees F): 105, 105 deg C
$137.10/10EA
- Neoprene bushing makes liquid tight installation, applies pressure against cable the full length of bushing
- 9/16 in L thread
- 13/16 in dia throat
- S/SO/SV/ST/STD/SJ/SJO/SJT/SJTO/SVD cable
Specifications
Brand: Thomas & Betts
Cable Openings: 1/8 to 1/4, 1/8 to 1/4 in
Dimensions: 1-3/8 in Dia x 1-3/4 in L
Finish: Zinc Plated
Series: Ranger, Ranger®
Temperature Rating (Degrees F): 105, 105 deg C
Trade Size: 3/4, 3/4 in
Type: Liquidtight, Liquidtight Strain Relief Straight
Cable type: S/SO
Color: Metallic
Connection type: Thread, Threaded
Country of origin: CA
Material: Die Cast Zinc
Manufacturer Name: ABB
UNSPSC: 39121431
UPC: 00786210025308
Thomas & Betts 2530 Cord Connector
T&B Strain Relief Cord Connector, Liquidtight, Series: Ranger , 3/4 in, Cable Openings: 1/8 to 1/4 in, S/SO Cable, Thread, Die Cast Zinc, Zinc Plated, Metallic, 105 deg C, 1-3/8 in Dia x 1-3/4 in L
Additional Description: TB -2530 3/4 IN CORD CONN .125-.250 RANG RANG
Catalog Description: Liquidtight Strain Relief Cord Connector, 3/4 Inch, Straight, Cord Range 0.125 to 0.250 Inch, Die Cast Zinc
Item FeaturesFor hazardous locations where general purpose equipment is specifically permitted by NEC 501-4(B)
Item Features
Item FeaturesANSI NFPA 70-2008|Coast Guard CG293|CSA C22.2 File No. 18.3|UL 514B File No. E13938
