Part Number # 2541
SKU # 38419
Image Disclaimers Message
2541

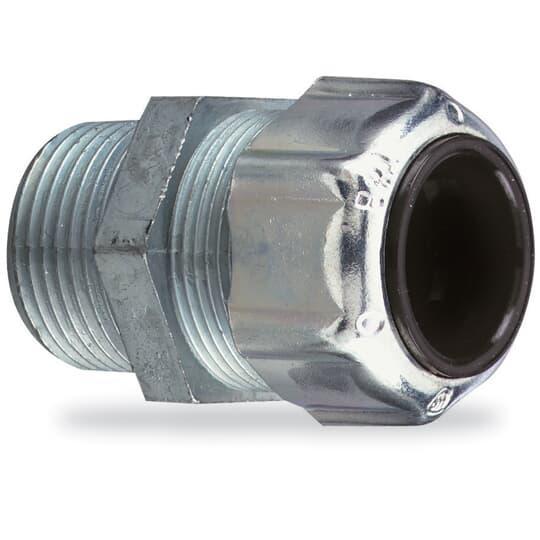

Thomas & Betts 2541 Cord Connector
Part Number # 2541
SKU # 38419
$296.76 / 10Each
Typical price:$397.65 / Each
Thomas & Betts 2541 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 2541 |
| SKU #: | 38419 |
| Cable Openings: | 1/4 to 3/8, 1/4 to 3/8 in |
| Dimensions: | 1-3/8 in Dia x 1-23/32 in L |
| Finish: | Zinc Plated |
| Series: | Ranger, Ranger® |
| Temperature Rating (Degrees F): | 105, 105 deg C |
| Trade Size: | 1, 1 in |
| Type: | Liquidtight, Liquidtight Strain Relief Straight |
| Cable type: | S/SO |
| Connection type: | Thread, Threaded |
| Country of origin: | CA |
| Material: | Die Cast Zinc |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121431 |
| UPC: | 00786210025414 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$296.76 / 10Each
Typical price:$397.65 / Each
Quantity:
Thomas & Betts 2541 Cord Connector
Brand: Thomas & Betts
Part Number: 2541
T&B Strain Relief Cord Connector, Liquidtight, Series: Ranger , 1 in, Cable Openings: 1/4 to 3/8 in, S/SO Cable, Thread, Die Cast Zinc, Zinc Plated, Metallic, 105 deg C, 1-3/8 in Dia x 1-23/32 in L
Additional Description: TB -2541 1 IN CORD CONNECTOR .250-.375 RANGE RANGE
Catalog Description: Liquidtight Strain Relief Cord Connector, 1 Inch, Straight, Cord Range 0.250 to 0.375 Inch, Die Cast Zinc
2541 Application
For hazardous locations where general purpose equipment is specifically permitted by NEC 501-4(B)2541 Item Features
- Neoprene bushing makes liquid tight installation, applies pressure against cable the full length of bushing
- 9/16 in L thread
- 49/64 in dia throat
- S/SO/SV/ST/STD/SJ/SJO/SJT/SJTO/SVD cable
2541 Standards
ANSI NFPA 70-2008|Coast Guard CG293|CSA C22.2 File No. 18.3|UL 514B File No. E13938SKU #38419Part Number #2541UNSPSC39121431UPC00786210025414
