256-30695-1160

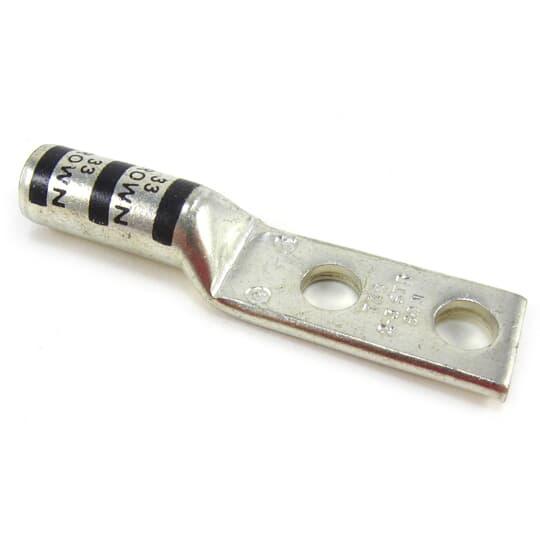

Thomas & Betts 256-30695-1160 Color-Keyed Compression Lug
Part Number # 256-30695-1160
SKU # 2250710
Thomas & Betts 256-30695-1160 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 256-30695-1160 |
| SKU #: | 2250710 |
| Barrel Size: | 0.41 in Dia |
| Barrel Type: | Blind End/Long |
| Conductor Size: | 2, 2 AWG, 3 to 2 |
| Conductor Type: | Copper |
| Overall Length: | 3.08, 3.08 in |
| Specifications: | 1 in Hole Spacing, 1 in Stud Hole Spacing, Tin Plated |
| Tongue Size: | 1.94 in L x 0.59 in W x 0.11 in THK |
| Type: | 2-Hole, 2-Hole Non-Insulated |
| Color: | Brown |
| Country of origin: | MX |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00786210068916 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 256-30695-1160 Color-Keyed Compression Lug
Brand: Thomas & Betts
Part Number: 256-30695-1160
Color-Keyed Compression Lug, 2-Hole Non-Insulated, Copper Conductor, 2 AWG Conductor, Die Code: 33, 35 kV, 3/8 in Stud, 1.94 in L x 0.59 in W x 0.11 in THK Tongue, 3.08 in Overall Length, Blind End/Long Barrel, 0.41 in Dia Barrel, Specifications: 1 in Stud Hole Spacing, Tin Plated, Copper, Brown
Additional Description: TB -256-30695-1160 CU TP 2HL LUG LNGBRL No2-3 3/8B BRN
Catalog Description: Copper Two-Hole Lug, Long Barrel, Blind End, Peep Hole, Max 35kV, Wire Size #2-3 AWG, 3/8 Inch Bolt Size, 1 Inch Hole Spacing, Tin Plated, Die Color Code Brown, Die Code 33
256-30695-1160 Item Features
- Peep hole
- High conductivity wrought copper construction
- Tin plated finish
256-30695-1160 Standards
CSA Certified|UL File No. E9809SKU #2250710Part Number #256-30695-1160UNSPSC39121405UPC00786210068916
