Part Number # 256-30695-1265
SKU # 2252536
Image Disclaimers Message
256-30695-1265

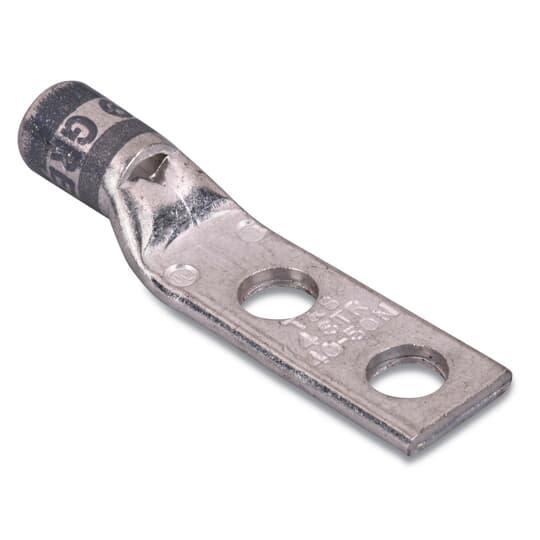

Thomas & Betts 256-30695-1265 Color-Keyed Compression Connector Lug
Part Number # 256-30695-1265
SKU # 2252536
Thomas & Betts 256-30695-1265 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 256-30695-1265 |
| SKU #: | 2252536 |
| Barrel Size: | 0.52 in Dia |
| Barrel Type: | Standard |
| Conductor Size: | 1/0, 1/0 AWG |
| Conductor Type: | Copper |
| Overall Length: | 3-1/2, 3-1/2 in |
| Specifications: | 1-3/4 in Hole Spacing, Tin Plated Finish, 1-3/4 in Stud Hole Spacing, Tin Plated |
| Tongue Size: | 2.57 in L x 0.75 in W x 0.14 in THK |
| Type: | 2-Hole, 2-Hole Non-Insulated |
| Color: | Pink |
| Country of origin: | MX |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00786210642314 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 256-30695-1265 Color-Keyed Compression Connector Lug
Brand: Thomas & Betts
Part Number: 256-30695-1265
Color-Keyed Compression Lug Connector, 2-Hole Non-Insulated, Copper Conductor, 1/0 AWG Conductor, Die Code: 42, 35 kV, 3/8 in Stud, 2.57 in L x 0.75 in W x 0.14 in THK Tongue, 3-1/2 in Overall Length, Standard Barrel, 0.52 in Dia Barrel, Specifications: 1-3/4 in Stud Hole Spacing, Tin Plated, Copper, Pink
Additional Description: TB -256-30695-1265 (N) CU TP 2HL LUG STND BRL 1/0 3/8B PNK NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Copper Two-Hole Lug, Standard Barrel, Peep Hole, Max 35kV, Wire Size 1/0 AWG, 3/8 Inch Bolt Size, 1-3/4 Inch Hole Spacing, Tin Plated, Die Color Code Pink, Die Code 42
256-30695-1265 Item Features
- High conductivity wrought copper construction
256-30695-1265 Standards
CSA Certified|UL File No. E9809SKU #2252536Part Number #256-30695-1265UNSPSC39121405UPC00786210642314
