Part Number # 256-30695-255
SKU # 2235343
Image Disclaimers Message
256-30695-255

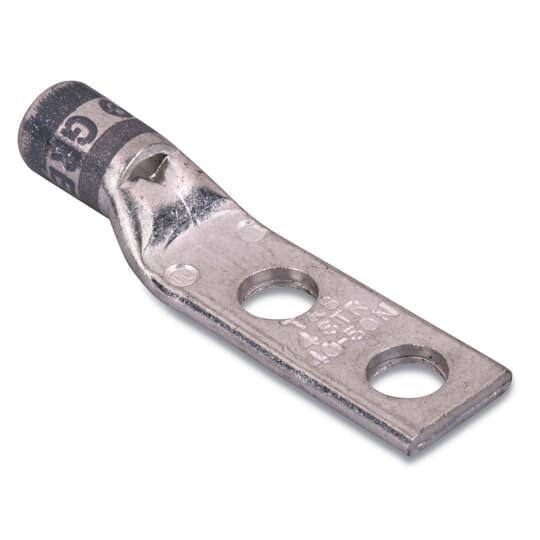

Thomas & Betts 256-30695-255 Color-Keyed Compression Lug
Part Number # 256-30695-255
SKU # 2235343
Thomas & Betts 256-30695-255 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 256-30695-255 |
| SKU #: | 2235343 |
| Barrel Size: | 0.37 in Dia |
| Barrel Type: | Standard |
| Conductor Size: | 4 AWG |
| Conductor Type: | Copper |
| Overall Length: | 2.56 in |
| Specifications: | 1 in Stud Hole Spacing, Tin Plated |
| Tongue Size: | 1.81 in L x 0.59 in W x 0.09 in THK |
| Type: | 2-Hole Non-Insulated |
| Color: | Gray |
| Country of origin: | MX |
| Material: | Copper |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121405 |
| UPC: | 00786210068527 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 256-30695-255 Color-Keyed Compression Lug
Brand: Thomas & Betts
Part Number: 256-30695-255
Color-Keyed Compression Lug, 2-Hole Non-Insulated, Copper Conductor, 4 AWG Conductor, Die Code: 29, 35 kV, 3/8 in Stud, 1.81 in L x 0.59 in W x 0.09 in THK Tongue, 2.56 in Overall Length, Standard Barrel, 0.37 in Dia Barrel, Specifications: 1 in Stud Hole Spacing, Tin Plated, Copper, Gray
Additional Description: TB -256-30695-255 CU TP 2HL LUG STND BRL No4 3/8B GRY
Catalog Description: Copper Two-Hole Lug, Standard Barrel, Peep Hole, Max 35kV, Wire Size #4 AWG, 3/8 Inch Bolt Size, 1 Inch Hole Spacing, Tin Plated, Die Color Code Gray, Die Code 29
256-30695-255 Item Features
- Peep hole
- High conductivity wrought copper construction
- Tin plated finish
256-30695-255 Standards
CSA Certified|UL File No. E9809SKU #2235343Part Number #256-30695-255UNSPSC39121405UPC00786210068527
