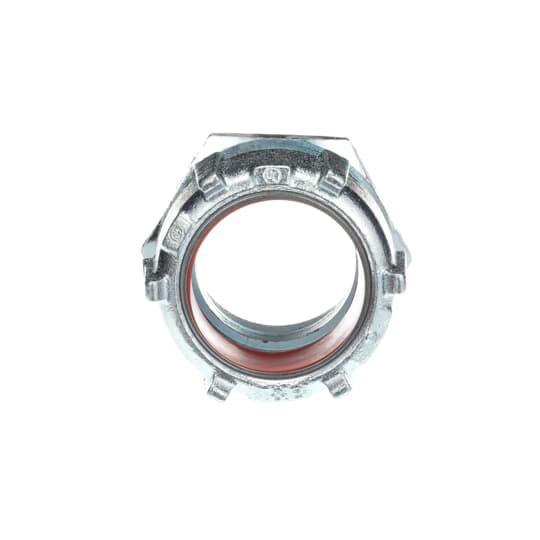

Thomas & Betts 2585 Cord Connector
Thomas & Betts 2585 Cord Connector
Part #:2585
SKU #: 931359
$128.56/EA
Key Features
Part #:2585
SKU #: 931359
Brand: Thomas & Betts
Cable Openings: 1.937 to 2.187, 1.937 to 2.187 in
Dimensions: 3-3/4 in Dia x 3-7/32 in L
Finish: Zinc Plated
Series: Ranger, Ranger®
Temperature Rating (Degrees F): 105, 105 deg C
$128.56/EA
- Neoprene bushing makes liquid tight installation, applies pressure against cable the full length of bushing
- 1-1/32 in L thread
- S/SO/SV/ST/STD/SJ/SJO/SJT/SJTO/SVD cable
Specifications
Brand: Thomas & Betts
Cable Openings: 1.937 to 2.187, 1.937 to 2.187 in
Dimensions: 3-3/4 in Dia x 3-7/32 in L
Finish: Zinc Plated
Series: Ranger, Ranger®
Temperature Rating (Degrees F): 105, 105 deg C
Trade Size: 2-1/2, 2-1/2 in
Type: Liquidtight, Liquidtight Strain Relief Straight
Cable type: S/SO
Color: Metallic
Connection type: Thread, Threaded
Country of origin: CA
Material: Malleable Iron
Manufacturer Name: ABB
UNSPSC: 39121431
UPC: 00786210025858
Thomas & Betts 2585 Cord Connector
T&B Strain Relief Cord Connector, Liquidtight, Series: Ranger , 2-1/2 in, Cable Openings: 1.937 to 2.187 in, S/SO Cable, Thread, Malleable Iron, Zinc Plated, Metallic, 105 deg C, 3-3/4 in Dia x 3-7/32 in L
Additional Description: TB -2585 2 1/2 M.I. CONNECTOR(STR.RELI 1.937-2.187 CORD RANGE
Catalog Description: Liquidtight Strain Relief Cord Connector, 2-1/2 Inch, Straight, Cord Range 1.937 to 2.187 Inch, Malleable Iron
Item FeaturesFor hazardous locations where general purpose equipment is specifically permitted by NEC 501-4(B)
Item Features
Item FeaturesANSI NFPA 70-2008|Coast Guard CG293|CSA C22.2 File No. 18.3|UL 514B File No. E13938
