Brand: Thomas & Betts
2690

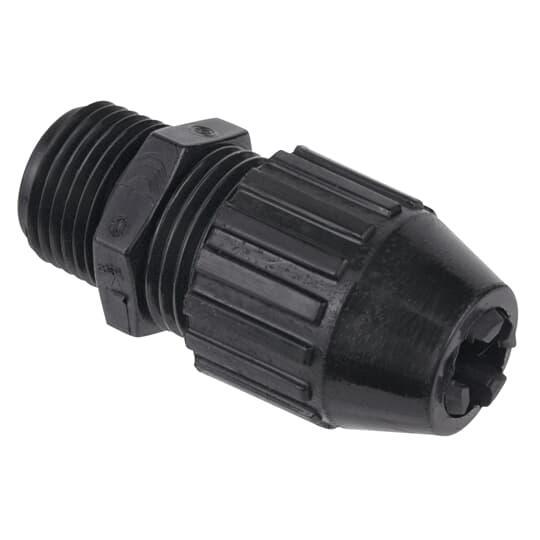

Thomas & Betts 2690 Black Beauty Cord Connector
Part Number # 2690
SKU # 38464
$13.31 / Each
Typical price:$17.83 / Each
Thomas & Betts 2690 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 2690 |
| SKU #: | 38464 |
| Cable Openings: | 0.125 to 0.275, 0.125 to 0.275 in |
| Dimensions: | 2.3 in L x 0.9 in W |
| Temperature Rating (Degrees F): | -34 to 105, -34 to 105 deg C |
| Trade Size: | 1/2, 1/2 in |
| Type: | Liquidtight Strain Relief, Liquidtight Strain Relief Straight |
| Color: | Black |
| Connection type: | Thread, Threaded |
| Country of origin: | US |
| Material: | Nylon |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121431 |
| UPC: | 00786210026909 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$13.31 / Each
Typical price:$17.83 / Each
Quantity:
Thomas & Betts 2690 Black Beauty Cord Connector
Brand: Thomas & Betts
Part Number: 2690
T&B Black Beauty Cord Connector, Liquidtight Strain Relief, 1/2 in, Cable Openings: 0.125 to 0.275 in, Thread, Nylon, Black, -34 to 105 deg C, 2.3 in L x 0.9 in W
Additional Description: TB -2690 1/2 BLACK BEAUTY CORD FIT .125-.275 .125-.275
Catalog Description: Liquidtight Cord Connector, 1/2 Inch, Straight, Cord Range 0.125 to 0.275 Inch, Meets Coast Guard CG293, Nylon, Black
2690 Application
For connecting flexible cord to a box or enclosure and provide adequate strain relief2690 Item Features
- Hand tightens, no tools needed for assembly
- Segmented chuck provides high mechanical pullout performance, will not cut or damage cord jacket
- 0.6 in L thread
- 0.33 in dia throat
- Suitable for use in hazardous locations where general purpose equipment is specifically permitted by NEC. class I, Div 2, class II, Div 1 & 2, class III, Div 1 & 2, NEC 501-4(b), 502-4(a)(b), 503-3(a)(b)
- Neoprene bushing
- Non-metallic
2690 Standards
Coast Guard CG293|CSA Certified|UL94 V-2 Flammability Rated|UL File No. E13938SKU #38464Part Number #2690UNSPSC39121431UPC00786210026909
