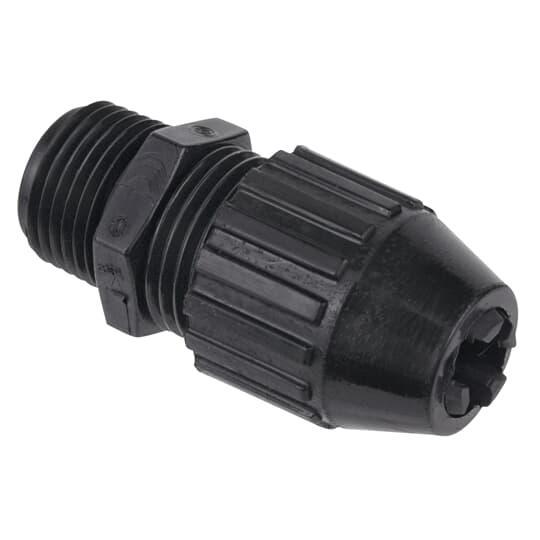

Thomas & Betts 2691 Black Beauty Cord Connector
Part Number # 2691
SKU # 2251360
$131.76 / 10Each
Thomas & Betts 2691 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 2691 |
| SKU #: | 2251360 |
| Cable Openings: | 0.125 to 0.275, 0.125 to 0.275 in, 0.560 to 0.690 in |
| Dimensions: | 3 in L x 1.57 in W |
| Temperature Rating (Degrees F): | -34 to 105, -34 to 105 deg C |
| Trade Size: | 1/2, 1/2 in |
| Type: | Liquidtight Strain Relief, Liquidtight Strain Relief Straight |
| Color: | Black |
| Connection type: | Thread, Threaded |
| Country of origin: | US |
| Material: | Nylon |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121431 |
| UPC: | 00786210026916 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$131.76 / 10Each
Quantity:
- T&B Black Beauty Cord Connector, Liquidtight Strain Relief, 1/2 in, Cable Openings: 0.560 to 0.690 in, Thread, Nylon, Black, -34 to 105 deg C, 3 in L x 1.57 in W
2691 Application
For connecting flexible cord to a box or enclosure and provide adequate strain relief2691 Item Features
- Hand tightens, no tools needed for assembly
- Segmented chuck provides high mechanical pullout performance, will not cut or damage cord jacket
- 0.6 in L thread
- 0.54 in dia throat
- Suitable for use in hazardous locations where general purpose equipment is specifically permitted by NEC. class I, Div 2, class II, Div 1 & 2, class III, Div 1 & 2, NEC 501-4(b), 502-4(a)(b), 503-3(a)(b)
- Neoprene bushing
- Remove sufficient outer covering of cable to permit conductors to pass-through fitting body
- Non-metallic
2691 Standards
Coast Guard CG293|CSA Certified|UL94 V-2 Flammability Rated|UL File No. E13938SKU #2251360Part Number #2691UNSPSC39121431UPC00786210026916
