Brand: Thomas & Betts

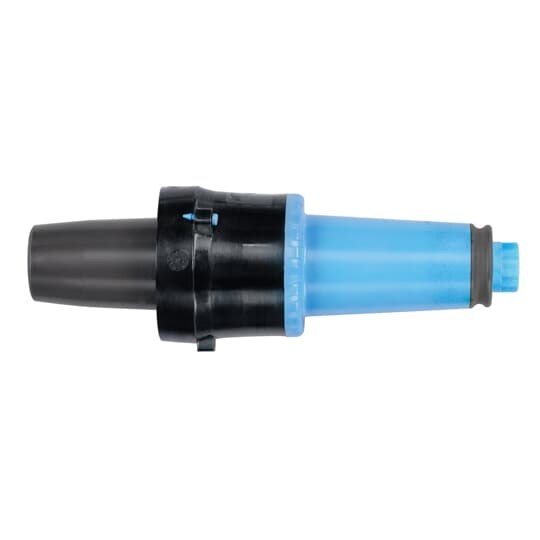

Thomas & Betts 2701A4 Elastimold Loadbreak Bushing Insert
Part Number # 2701A4
SKU # 2316312
$3624.75 / 25Each
Thomas & Betts 2701A4 Key Features
Brand: Thomas & Betts
Part Number # 2701A4
SKU #2316312
Amperage Rating: 200, 200 A
Dimensions: 2.9 in Dia x 8.93 in L
Suitable For Use With: Standard ANSI Bushing and Elbow Connections
Type: Insulated
Voltage Rating: 25, 25 kVAC
Color: Black
Country of origin: US
Material: EPDM Rubber
Manufacturer Name: ABB
UNSPSC: 39121421
UPC: 00783786652877
$3624.75 / 25Each
Thomas & Betts 2701A4 Elastimold Loadbreak Bushing Insert
Brand: Thomas & Betts
Part Number: 2701A4
Elastimold Loadbreak Bushing Insert, Insulated, 25 kVAC, 200 A, For Use With: Standard ANSI Bushing and Elbow Connections, EPDM Rubber, Black, 2.9 in Dia x 8.93 in L Dimensions
Additional Description: TB -2701A4 LB BUSHING INSERT 25KV 200A 25kV 200 Amp, Loadbreak Bushing Insert, includes internal torquing featue using 200AT Assembly Tool.
Catalog Description: 25kV 200 Amp, Loadbreak Bushing Insert, includes internal torquing feature using 200AT Assembly Tool. Length 8.93 inch, Widest Diameter 2.9 inch.
2701A4 Application
For connecting shielded cables sub-surface transformers, generators, pad mounted transformers, regulators, switchgear and reclosers2701A4 Item Features
- Includes internal torquing feature using 200AT assembly tool
- Blue PBT interface shield reduces sticking and provides a seating indicator
- Vent prevents partial vacuum flashover
- Includes hex broach for torque installation
- Peroxide-cured insulation and jacket
- Provision for ground wire connection
2701A4 Standards
ANSI Specified|IEEE 386SKU #2316312Part Number #2701A4UNSPSC39121421UPC00783786652877
