Part Number # 2709
SKU # 142633
Image Disclaimers Message
2709

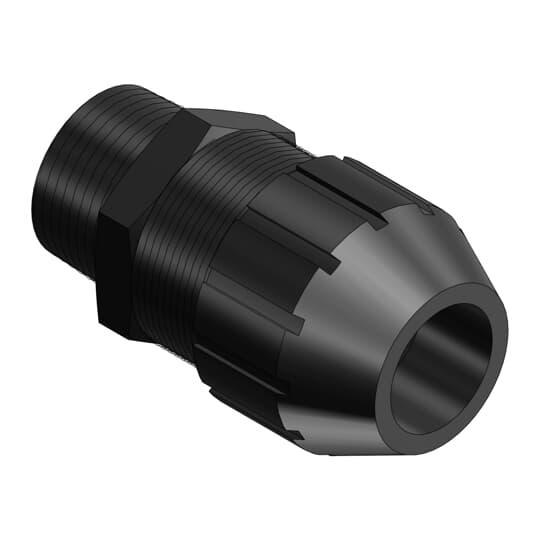

Thomas & Betts 2709 Black Beauty Cord Connector
Part Number # 2709
SKU # 142633
$85.92 / Each
Thomas & Betts 2709 Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 2709 |
| SKU #: | 142633 |
| Cable Openings: | 1.52 to 1.86, 1.52 to 1.86 in |
| Dimensions: | 4.9 in L x 3.5 in W |
| Temperature Rating (Degrees F): | -34 to 105, -34 to 105 deg C |
| Trade Size: | 2, 2 in |
| Type: | Liquidtight Strain Relief, Liquidtight Strain Relief Straight |
| Cable type: | SV/SO |
| Color: | Black |
| Connection type: | Thread, Threaded |
| Country of origin: | US |
| Material: | Nylon |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121431 |
| UPC: | 00786210027098 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$85.92 / Each
Quantity:
- T&B Black Beauty Cord Connector, Liquidtight Strain Relief, 2 in, Cable Openings: 1.52 to 1.86 in, SV/SO Cable, Thread, Nylon, Black, -34 to 105 deg C, 4.9 in L x 3.5 in W
2709 Application
For connecting flexible cord to a box or enclosure and provide adequate strain relief2709 Item Features
- Hand tightens, no tools needed for assembly
- Segmented chuck provides high mechanical pullout performance, will not cut or damage cord jacket
- 0.84 in L thread
- 1.89 in dia throat
- Suitable for use in hazardous locations where general purpose equipment is specifically permitted by NEC. class I, Div 2, class II, Div 1 & 2, class III, Div 1 & 2, NEC 501-4(b), 502-4(a)(b), 503-3(a)(b)
- Neoprene bushing
- Non-metallic
2709 Standards
Coast Guard CG293|CSA File No. 52391|UL94 V-2 Flammability Rated|UL File No. E13938SKU #142633Part Number #2709UNSPSC39121431UPC00786210027098
