Part Number # 2940NM
SKU # 2230495
Image Disclaimers Message
Brand: Thomas & Betts
2940NM

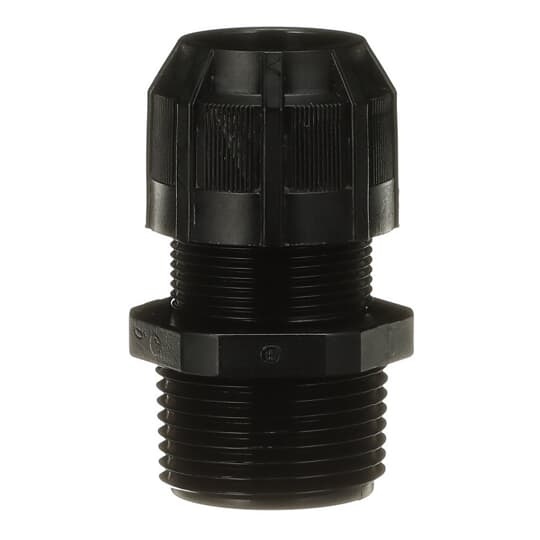

Thomas & Betts 2940NM Cord Connector
Part Number # 2940NM
SKU # 2230495
$184.90 / 10Each
Typical price:$247.77 / Each
Thomas & Betts 2940NM Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 2940NM |
| SKU #: | 2230495 |
| Cable Openings: | 0.31 to 0.56, 0.31 to 0.56 in |
| Dimensions: | 1-13/32 in Dia x 2-11/32 in L |
| Series: | Ranger, Ranger® |
| Temperature Rating (Degrees F): | -34 to 105, -34 to 105 deg C |
| Trade Size: | 1, 1 in |
| Type: | Liquidtight Strain Relief, Liquidtight Strain Relief Straight |
| Cable type: | S/SO |
| Color: | Black |
| Connection type: | NPT, NPT/Straight |
| Country of origin: | US |
| Material: | Nylon 6.6/Polyamide |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121431 |
| UPC: | 00786210797465 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$184.90 / 10Each
Typical price:$247.77 / Each
Quantity:
Thomas & Betts 2940NM Cord Connector
Brand: Thomas & Betts
Part Number: 2940NM
T&B Cord Connector, Liquidtight Strain Relief, Series: Ranger , 1 in, Cable Openings: 0.31 to 0.56 in, S/SO Cable, NPT/Straight, Nylon 6.6/Polyamide, Black, -34 to 105 deg C, 1-13/32 in Dia x 2-11/32 in L
Additional Description: TB -2940NM 1IN NYLON RANGER CORDCONN .310-.560
Catalog Description: Liquidtight Strain Relief Connector, Straight, 1 Inch NPT Thread, Cable Range 0.310 Inch/7.9mm to 0.560 Inch/14.2mm, IP65 Rating, UV Resistant Polyamide 6.6 Body, Black
2940NM Application
For passing a cord cable into an enclosure through a bulkhead and ordinary, wet or dry locations2940NM Item Features
- Extended range with superior strain relief
- Reduced overall size, fits into tighter spaces
- Gland nut designed to restrict cable bending
- Suitable for ordinary, wet or dry locations
- 1/2 in L thread
- 0.98 in dia throat
- IP65 rating, UV-resistant
- Non-metallic means corrosion-resistance
- Nylon gland and grip, oil-resistant elastomer bushing
2940NM Standards
CSA 52391|UL File No. E13938SKU #2230495Part Number #2940NMUNSPSC39121431UPC00786210797465
