2941AL

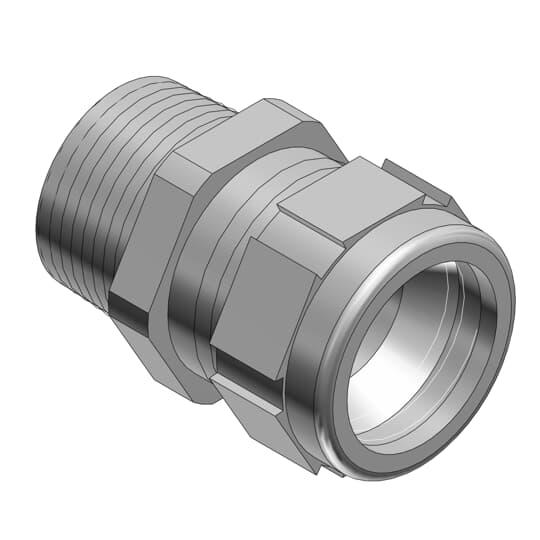

Thomas & Betts 2941AL Liquidtight Cord Connector
Part Number # 2941AL
SKU # 2131789
$222.41 / 10Each
Typical price:$298.02 / Each
Thomas & Betts 2941AL Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 2941AL |
| SKU #: | 2131789 |
| Cable Openings: | 1/2 to 3/4, 1/2 to 3/4 in |
| Dimensions: | 2-11/32 in L x 1-13/32 in W |
| Series: | Ranger, Ranger® |
| Temperature Rating (Degrees F): | -4 to 221, -4 to 221 deg F |
| Trade Size: | 1, 1 in |
| Type: | Liquidtight Strain Relief, Strain Relief Straight |
| Cable type: | S/SO |
| Color: | Metallic |
| Connection type: | Thread, Threaded |
| Country of origin: | CA |
| Material: | Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121431 |
| UPC: | 00786210797205 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$222.41 / 10Each
Typical price:$298.02 / Each
Quantity:
- T&B Cord Connector, Liquidtight Strain Relief, Series: Ranger, 1 in, Cable Openings: 1/2 to 3/4 in, S/SO Cable, Thread, Aluminum, Metallic, -4 to 221 deg F, 2-11/32 in L x 1-13/32 in W
2941AL Application
For passing a cord cable into an enclosure through a bulkhead and ordinary, wet or dry locations2941AL Item Features
- Extended range with superior strain relief
- Reduced overall size, fits into tighter spaces
- Gland nut designed to restrict cable bending
- Suitable for ordinary, wet or dry locations
- Suitable for use in hazardous locations where general purpose equipment is specifically permitted by NEC 501-4(b)
- 25/32 in L thread
- 9/16 in Dia throat
- Aluminum gland nuts, grip and neoprene gasket
- S/SO/SV/ST/STD/SJ/SJO/SJT/SJTO/SVD cable
2941AL Standards
ANSI C33.84|ANSI NFPA 70-1978|CSA C22.2 File No. 18|CSA File No. LR589/LR4484/52391|UL 514 File No. E13938SKU #2131789Part Number #2941ALUNSPSC39121431UPC00786210797205
