Part Number # 2B350PW
SKU # 2409152
2B350PW
Thomas & Betts 2B350PW Blackburn
Part Number # 2B350PW
SKU # 2409152
Thomas & Betts 2B350PW Key Features
| Brand: | Thomas & Betts |
|---|---|
| Part Number # : | 2B350PW |
| SKU #: | 2409152 |
| Conductor Size: | 4 AWG to 350 kcmil, 4/0 AWG to 350 kcmil |
| Conductor Type: | ACSR/Aluminum/Copper/Solid |
| Dimensions: | 2-1/2 in H x 2-1/8 in W, 2-1/8 in W x 2-1/2 in H |
| Series: | 2BPW |
| Specifications: | 0.522 to 0.68 in Dia Conductor A, 0.204 to 0.68 in Dia Conductor B |
| Tap Size: | 4 AWG to 350 kcmil, 4/0 AWG to 350 kcmil |
| Type: | 1-Piece |
| Country of origin: | IN |
| Material: | Aluminum |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121408 |
| UPC: | 00783786400256 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Thomas & Betts 2B350PW Blackburn
Brand: Thomas & Betts
Part Number: 2B350PW

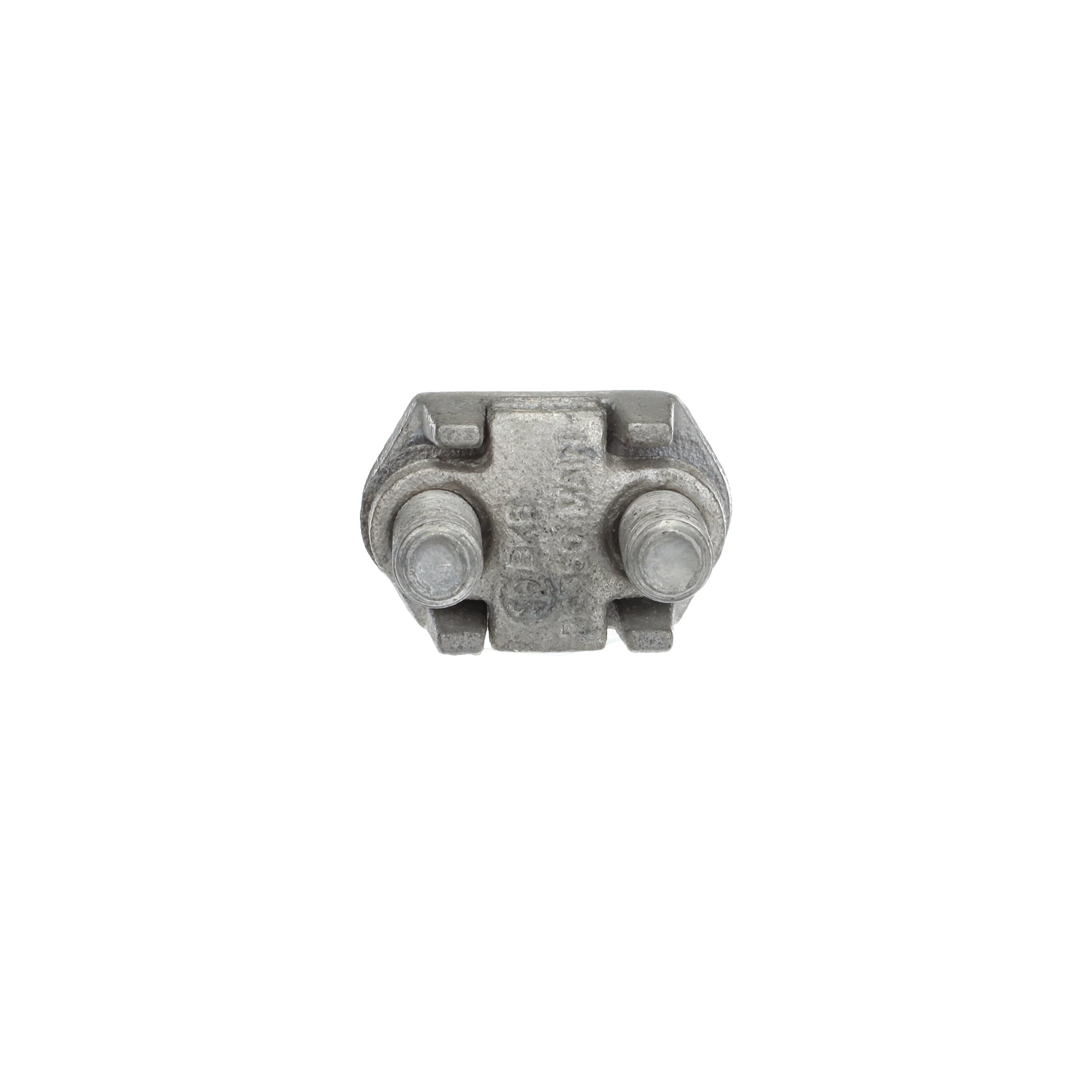

Blackburn Two-Bolt Connector, 1-Piece, Series: 2BPW, ACSR/Aluminum/Copper/Solid Conductor, 4 AWG to 350 kcmil, 4/0 AWG to 350 kcmil Conductor, 4 AWG to 350 kcmil, 4/0 AWG to 350 kcmil Tap, 1/2 x 3/4 in Bolt, 0.522 to 0.68 in Dia Conductor A, 0.204 to 0.68 in Dia Conductor B, Aluminum, 2-1/2 in H x 2-1/8 in W
Additional Description: TB -2B350PW AL 2BLT CONN W/SPCR 350-4 3/4B
Catalog Description: Aluminum Type 2BPW - Two-Bolt Connector with Spacer for Wire Range Main: 350-4 - 350-4/0 Tap: 350-4 Sol. - 350-4/0, Bolt Size 3/4
2B350PW Item Features
- Castings and bolts of high-strength copper alloy, spacer of ductile, high conductivity copper alloy
- Single-piece construction
- Contoured spacer is ringed and swings easily over the conductor
- 4 AWG to 350 kcmil minimum, 4/0 AWG to 350 kcmil maximum main conductor range
- 4 AWG to 350 kcmil solid minimum, 4/0 AWG to 350 kcmil maximum tap conductor range
- 1/pack
2B350PW Standards
UL E9809 / UL E9809SKU #2409152Part Number #2B350PWUNSPSC39121408UPC00783786400256
