Brand: Thomas & Betts

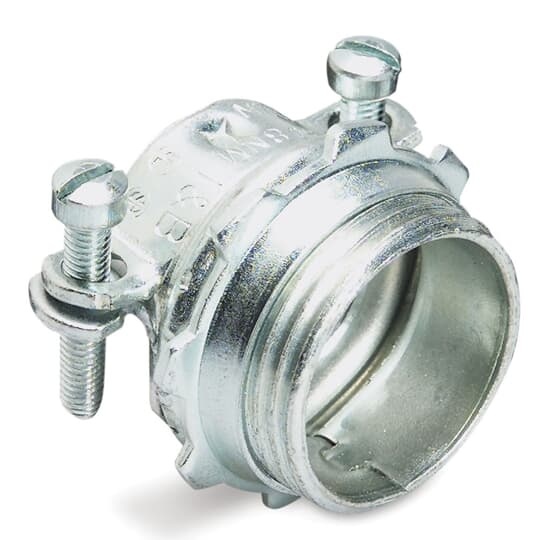

Thomas & Betts 3304 Cable Connector
Image Disclaimers Message
Brand: Thomas & Betts
Thomas & Betts 3304 Cable Connector
Brand: Thomas & Betts
Thomas & Betts 3304 Cable Connector
Part #:3304
SKU #: 38550
$173.25/25EA
Key Features
Part #:3304
SKU #: 38550
Brand: Thomas & Betts
Cable Openings: 0.69 to 0.99, 0.69 to 0.99 in
Dimensions: 1-9/32 in L x 1-7/8 in W x 1-15/32 in H
Finish: Electro-Zinc Plated
Trade Size: 1, 1 in
Type: 2-Screw Non-Insulated
$173.25/25EA
- Rounded cable grip and smooth bushing protect the cable sheath and wire insulation
- Since saddle is threaded, screws do not travel or extend beyond the connector body as it is clamped to the cable
- An extra lip on the saddle closes the unused part of the connector opening
- Non-metallic service entrance cable
- 3/4 in knockout
Specifications
Brand: Thomas & Betts
Cable Openings: 0.69 to 0.99, 0.69 to 0.99 in
Dimensions: 1-9/32 in L x 1-7/8 in W x 1-15/32 in H
Finish: Electro-Zinc Plated
Trade Size: 1, 1 in
Type: 2-Screw Non-Insulated
Cable type: Flex/Non-Metallic Sheathed
Color: Metallic
Connection type: Straight
Country of origin: US
Material: Steel
Manufacturer Name: ABB
UNSPSC: 39121419
UPC: 00786210033044
Thomas & Betts 3304 Cable Connector
T&B Cable Connector, 2-Screw Non-Insulated, 1 in, Cable Openings: 0.69 to 0.99 in, Flex/Non-Metallic Sheathed Cable, Straight, Steel, Electro-Zinc Plated, Metallic, 1-9/32 in L x 1-7/8 in W x 1-15/32 in H
Additional Description: TB -3304 1 TWO-SCREW CONNECTOR
Catalog Description: Sheathed Cable Fitting, Straight, Knockout Size 1 Inch, Two Screw Connector, Steel with Zinc Plating
Item FeaturesFor use to connect non-metallic sheathed cable and flexible cord to a box or enclosure
Item FeaturesSlotted Screw
Item Features
Item FeaturesCSA 2884|UL File No. E17583/E23013
